Edgeboard Connectors

(22 results)

Card edge or edgeboard connectors are a style of connector system in which (typically) a pattern of exposed copper regions at the periphery of a printed circuit board constitutes one-half of a mating connector pair. A common use case being the connection of accessory cards such as graphics accelerators to computer motherboards in desktop PC applications, they offer a relatively low-cost, high density interconnect option for applications where durability is not a primary concern.

Part #	Manufacturer	Description	Availability	Pricing
51700-0520W-001 Edgeboard Connectors	ACES GROUP	MINI PCIE EXPRESS REVERSE TYPE 0	7461	-
52741-3140A-002 Edgeboard Connectors	ACES GROUP	MXM PCIE GEN 4 0.5MM PITCH 314P	1000	-
91781-31408-001 Edgeboard Connectors	ACES GROUP	MXM PCIE GEN 4 0.5MM PITCH 314P	218	-
52730-0380D-021 Edgeboard Connectors	ACES GROUP	MCIO .6MM PITCH 38 POS VERT	225	-
52730-0740D-021 Edgeboard Connectors	ACES GROUP	MCIO .6MM PITCH 74 POS VERT	225	-
52729-0387D-021 Edgeboard Connectors	ACES GROUP	0.6MM PITCH 38 POSITION MINI COO	200	-
52729-1247D-021 Edgeboard Connectors	ACES GROUP	MCIO .6MM PITCH 124 POS VERT	200	-
52729-0747D-021 Edgeboard Connectors	ACES GROUP	MCIO .6MM PITCH 74 POS VERT	200	-
51748-0750C-012 Edgeboard Connectors	ACES GROUP	75P, 0.5MM M.2 CONN. H=8.5MM	340	-
110-10040-02 Edgeboard Connectors	ACES GROUP	HI-STACK (PCIE GEN3) SHIELDED MA	In Stock	-
110-10013-01 Edgeboard Connectors	ACES GROUP	HI-STACK (PCIE GEN3) MALE 0.8MM	In Stock	-
88885-2D08 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=5.	In Stock	-
88990-2D08 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=4.	In Stock	-
91783-31408-NV-01 Edgeboard Connectors	ACES GROUP	0.5MM MXM-3 EDGE CARD CONN., SMT	500	-
52742-3140M-001 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=7.	In Stock	-
88882-2D08 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=7.	In Stock	-
91782-31408-NV-01 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=7.	In Stock	-
110-10008-01 Edgeboard Connectors	ACES GROUP	HI-STACK FEMALE 0.8MM PITCH 64PI	In Stock	-
51736-0670G-005 Edgeboard Connectors	ACES GROUP	67P, 0.5MM M.2 CARD CONN. H=4.2M	750	-
88976-2D08 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=6.	In Stock	-

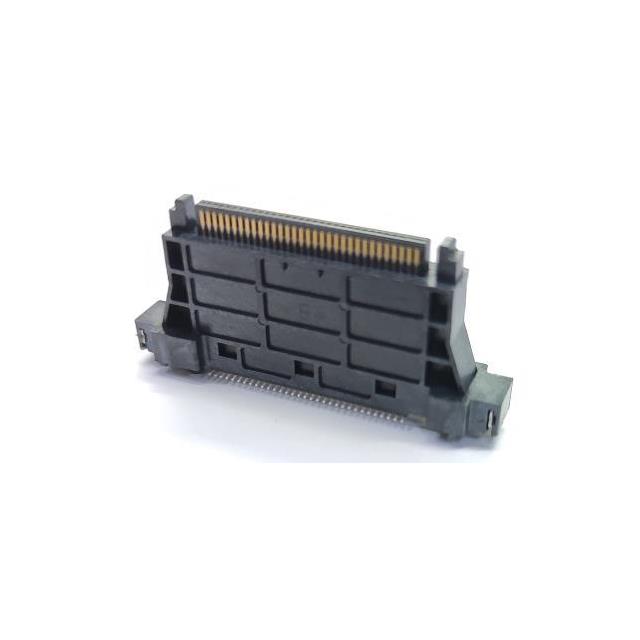

110-10007-02 Edgeboard Connectors	ACES GROUP	HI-STACK MALE 0.8MM PITCH 64PIN	In Stock	-
88883-2D08 Edgeboard Connectors	ACES GROUP	0.5MM MXM CONN. SMT D/R R/A H=9.	In Stock	-
