Allegro MicroSystems

A8650KEJTR-T

DC Switching Voltage Regulators

A8650KEJTR-T Description

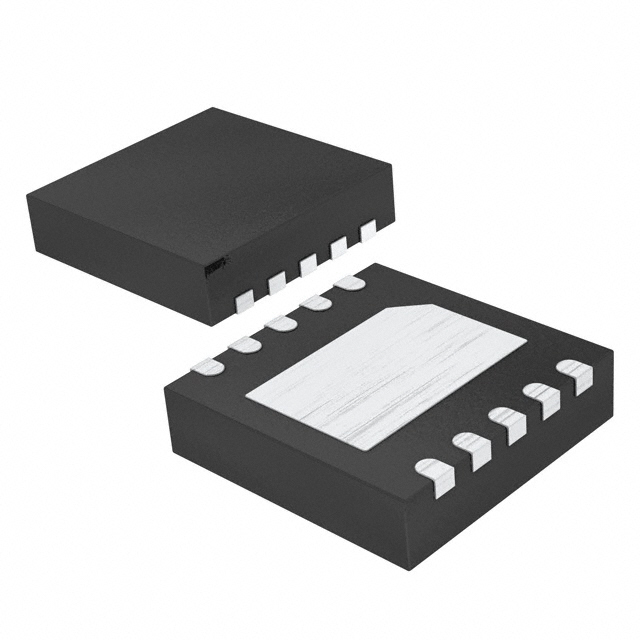

The A8650KEJTR-T is a high-performance, automotive-grade power management integrated circuit (PMIC) designed by Allegro MicroSystems. This IC regulator features a buck topology with an adjustable output voltage, making it highly versatile for a variety of applications. It operates within an input voltage range of 2.5V to 5.5V and can deliver an output current of up to 2A. The output voltage is adjustable down to a minimum of 0.8V, providing flexibility in power supply design. The A8650KEJTR-T is housed in a surface-mount 10DFN package and is available in tape and reel format, ensuring ease of integration into modern electronic systems.

A8650KEJTR-T Features

• Adjustable Output Voltage: The A8650KEJTR-T offers an adjustable output voltage from 0.8V to the input voltage, providing flexibility to meet the specific requirements of various electronic devices.
• Wide Input Voltage Range: With an input voltage range of 2.5V to 5.5V, this PMIC is suitable for applications with varying input power sources.
• High Output Current: Capable of delivering up to 2A of output current, the A8650KEJTR-T is ideal for applications requiring high power delivery.
• Synchronous Rectification: The inclusion of synchronous rectification enhances efficiency, making the A8650KEJTR-T highly efficient in power conversion.
• Switching Frequency Range: The switching frequency can be adjusted between 250kHz and 2.45MHz, allowing for optimization of the power supply design for size, efficiency, and performance.
• Automotive Grade: Certified for automotive applications, the A8650KEJTR-T meets stringent reliability and performance standards necessary for automotive electronics.
• Compliance and Safety: The A8650KEJTR-T is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and safety regulations.
• Moisture Sensitivity Level: With an MSL rating of 1 (Unlimited), the A8650KEJTR-T is suitable for use in environments with varying humidity levels without the need for special handling.

A8650KEJTR-T Applications

The A8650KEJTR-T is ideal for a range of applications, particularly in the automotive sector, where its high efficiency and reliability are crucial. Specific use cases include:

• Automotive Electronics: Ideal for powering various electronic systems in vehicles, such as infotainment systems, advanced driver-assistance systems (ADAS), and electronic control units (ECUs).
• Industrial Applications: Suitable for industrial control systems, where high power delivery and efficiency are required.
• Consumer Electronics: Can be used in high-power consumer devices that require a compact and efficient power solution.
• Telecommunications: Ideal for powering communication modules and devices that need reliable and efficient power management.

Conclusion of A8650KEJTR-T

The A8650KEJTR-T from Allegro MicroSystems stands out as a robust and versatile power management IC, particularly suited for automotive and industrial applications. Its adjustable output voltage, wide input voltage range, and high output current make it a flexible solution for various power supply needs. The inclusion of synchronous rectification and adjustable switching frequency further enhances its efficiency and performance. With its automotive-grade certification, compliance with environmental regulations, and moisture sensitivity level of 1, the A8650KEJTR-T is a reliable choice for engineers and designers looking for a high-performance PMIC.

A8650KEJTR-T Documents

Download datasheets and manufacturer documentation for A8650KEJTR-T

Datasheets :

A8650

PCN Packaging :

Tape Change 27/Jan/2023

HTML Datasheet :

A8650
