AOD413

AOD413 Description

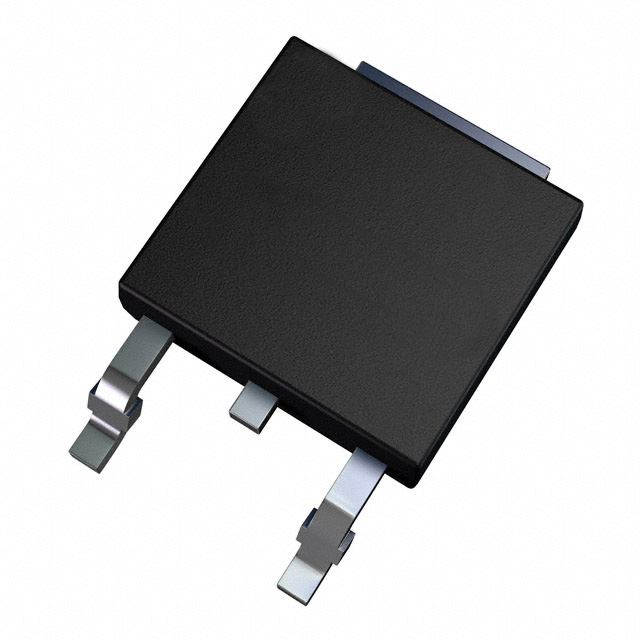

The AOD413 is a high-performance MOSFET P-CH 40V 24A TO252 from Alpha and Omega Semiconductor, Inc. This device is designed for use in various power electronics applications, offering excellent performance and reliability. With its obsolete status, it is essential to consider alternative options for new designs. However, for existing systems that rely on this component, the AOD413 remains a viable choice.

AOD413 Features

• Technology: MOSFET (Metal Oxide), offering high efficiency and low power loss.
• Drain to Source Voltage (Vdss): 40V, suitable for applications requiring high voltage handling.
• Current - Continuous Drain (Id) @ 25°C: 24A, providing ample current capacity for demanding applications.
• Rds On (Max) @ Id, Vgs: 45mOhm @ 12A, 10V, ensuring low on-resistance for minimal power dissipation.
• Gate Charge (Qg) (Max) @ Vgs: 14.1 nC @ 10 V, contributing to fast switching speeds.
• Input Capacitance (Ciss) (Max) @ Vds: 850 pF @ 20 V, minimizing capacitive effects and improving performance.
• Vgs (Max): ±20V, allowing for a wide range of gate voltages.
• Vgs(th) (Max) @ Id: 3V @ 250µA, ensuring reliable threshold voltage performance.
• Power Dissipation (Max): 2.5W (Ta), 50W (Tc), suitable for applications with varying power requirements.
• Mounting Type: Surface Mount
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating that the device is not sensitive to moisture and can be stored without special precautions.

AOD413 Applications

The AOD413 is ideal for applications that require high voltage and current handling, such as:

• Power Supplies: Due to its high voltage and current ratings, the AOD413 is well-suited for power supply designs.
• Motor Controls: The device's low on-resistance and high current capacity make it suitable for motor control applications.
• Automotive Electronics: The AOD413's robustness and high power dissipation capabilities make it an excellent choice for automotive electronics, such as engine control units and power management systems.

Conclusion of AOD413

While the AOD413 is an obsolete product, it remains a reliable choice for existing systems that require its specific performance characteristics. Its high voltage and current ratings, low on-resistance, and fast switching speeds make it suitable for power supply, motor control, and automotive electronics applications. However, for new designs, it is recommended to consider alternative models that offer similar performance benefits and are actively supported by the manufacturer.
