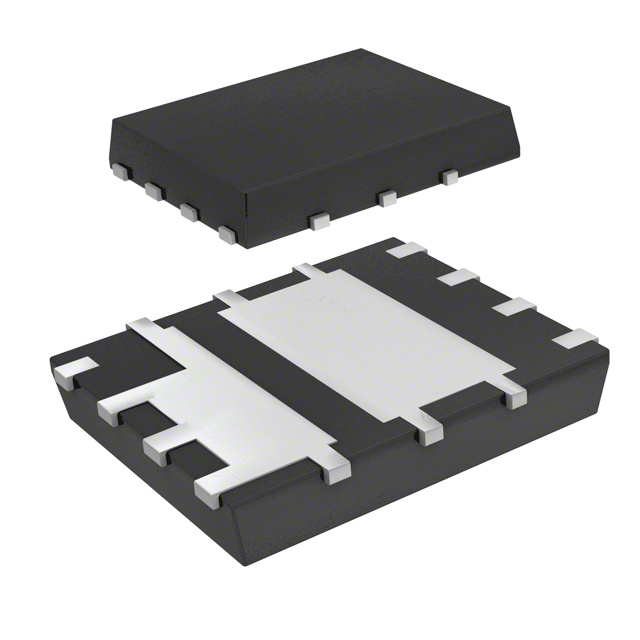

AON6934A

AON6934A Description

The AON6934A is a high-performance MOSFET (Metal Oxide) device manufactured by Alpha & Omega Semiconductor, Inc., designed for use in various electronic applications. This device is part of the FET, MOSFET Arrays category and offers a range of technical specifications that make it suitable for demanding applications.

AON6934A Features

• Technology: MOSFET (Metal Oxide), providing excellent performance and reliability.
• Drain to Source Voltage (Vdss): 30V, allowing for operation in high-voltage environments.
• Current - Continuous Drain (Id) @ 25°C: 22A and 30A, ensuring robust current handling capabilities.
• Rds On (Max) @ Id, Vgs: 5.2mOhm @ 20A, 10V, offering low on-resistance for efficient power management.
• Gate Charge (Qg) (Max) @ Vgs: 22nC @ 10V, minimizing power consumption in high-speed switching applications.
• Input Capacitance (Ciss) (Max) @ Vds: 1037pF @ 15V, reducing parasitic effects and improving performance.
• Vgs(th) (Max) @ Id: 2.2V @ 250µA, providing a low threshold voltage for easy gate drive.
• Power - Max: 3.6W and 4.3W, enabling operation in power-intensive applications.
• Mounting Type: Surface Mount, facilitating integration into compact and densely populated PCB designs.
• Package: Tape & Reel (TR), ensuring ease of handling and automation in manufacturing processes.
• RoHS Status: ROHS3 Compliant, adhering to environmental regulations and promoting sustainability.
• REACH Status: REACH Unaffected, indicating compliance with the European Union's chemical safety regulations.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), allowing for flexible storage and handling conditions.

AON6934A Applications

The AON6934A is ideal for a variety of applications where high performance, reliability, and compliance with environmental standards are paramount. Some specific use cases include:

• Power Management: Due to its high current and voltage ratings, the AON6934A is well-suited for power management applications in consumer electronics and industrial equipment.
• Automotive Electronics: The device's robust performance and compliance with environmental standards make it an excellent choice for automotive electronics, such as electric vehicle charging systems and powertrain control.
• Industrial Control Systems: The AON6934A's ability to handle high currents and voltages, along with its low on-resistance, makes it ideal for use in industrial control systems, where reliability and efficiency are critical.

Conclusion of AON6934A

The AON6934A is a high-performance MOSFET device that offers a range of technical specifications and features that make it suitable for demanding applications in power management, automotive electronics, and industrial control systems. Its low on-resistance, high current and voltage ratings, and compliance with environmental regulations make it a strong contender in the market for MOSFET devices. While it is currently marked as obsolete, its unique features and advantages make it a valuable option for applications where performance and reliability are paramount.
