ams OSRAM

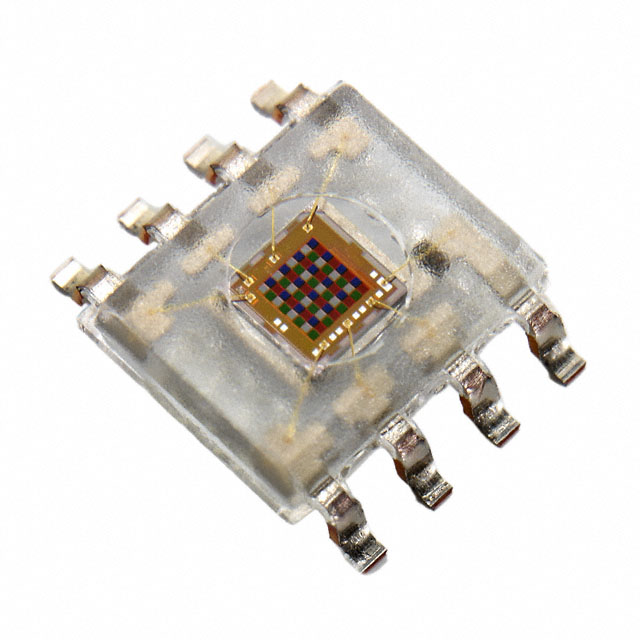

TCS3200D-TR

Color Sensors

The TCS3200D-TR is a color light-to-frequency converter from ams OSRAM. It is designed to measure the color and intensity of light in a variety of applications, including lighting control, color recognition, and ambient light sensing.

Description:

The TCS3200D-TR is a compact, integrated sensor module that uses a photodiode array to convert light into a frequency signal. The device includes four photodiodes with integrated color filters, allowing it to measure the intensity of light in different color channels. The output of the device is a pulse train whose frequency is proportional to the intensity of the light.

Features:

• Integrated photodiode array with color filters for measuring light intensity in different color channels
• Programmable integration time and gain settings for flexible measurement range
• I2C digital interface for easy integration with microcontrollers and other digital systems
• Small package size for easy integration into compact devices
• Low power consumption for extended battery life in portable applications

Applications:

The TCS3200D-TR is suitable for a wide range of applications that require accurate measurement of light color and intensity, including:

• Lighting control: Adjusting the brightness or color of lighting based on ambient light conditions
• Color recognition: Identifying and classifying objects based on their color
• Ambient light sensing: Measuring the intensity of ambient light for use in automatic dimming or brightness control
• Consumer electronics: Integrating into smartphones, tablets, and other devices for color and light sensing applications

Overall, the TCS3200D-TR is a versatile and accurate light-to-frequency converter that can be used in a variety of applications requiring precise measurement of light color and intensity.

TCS3200D-TR Documents

Download datasheets and manufacturer documentation for TCS3200D-TR

Datasheets :

TCS3200,210

PCN Obsolescence/ EOL :

Article_11841543070207035

HTML Datasheet :

TCS3200,210

PCN Design/Specification :

Leadframe 03/Aug/2016
