AD204JN

AD204JN Description

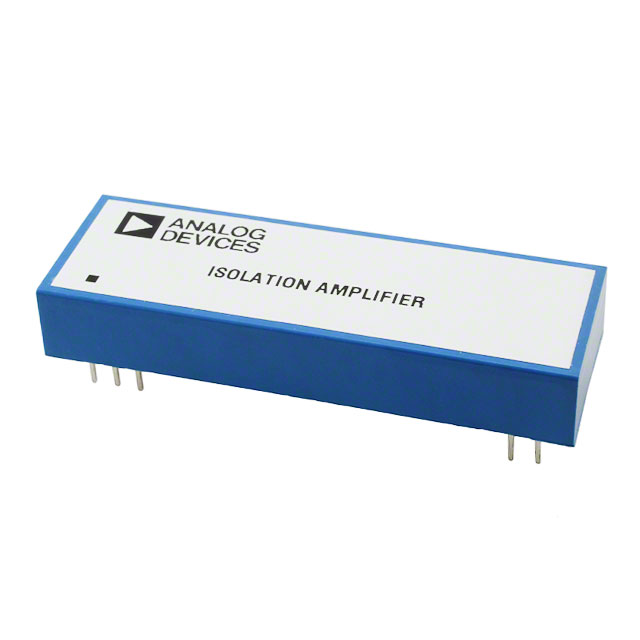

The AD204JN from Analog Devices Inc. is a high-performance dual-channel isolation amplifier designed for precision signal conditioning in demanding industrial and instrumentation applications. Packaged in an 11-pin DIP (Through Hole) and supplied in a tube, this obsolete yet robust IC operates within a 13.5V to 16.5V supply range, delivering 5 kHz gain bandwidth product (GBW) and ultra-low input bias current (30 pA). Its 15 mV input offset voltage ensures accurate signal amplification, while the 2 mA output current per channel supports moderate load driving. The AD204JN excels in isolating sensitive circuitry from noise and high-voltage transients, making it ideal for legacy systems requiring reliable isolation.

AD204JN Features

• Isolation Amplifier: Provides galvanic isolation, critical for noise immunity and safety in high-voltage environments.
• Low Input Bias Current (30 pA): Minimizes errors in high-impedance sensor interfaces.
• Wide Supply Range (13.5V–16.5V): Compatible with industrial power standards.
• Dual-Channel Design: Integrates two isolation amplifiers in one package, saving board space.
• Through-Hole Mounting (11-DIP): Simplifies prototyping and repair in legacy systems.
• MSL 1 (Unlimited): Non-sensitive to moisture, ensuring long-term storage reliability.

AD204JN Applications

• Industrial Automation: Isolate PLC I/O modules from ground loops and transient noise.
• Medical Equipment: Patient monitoring systems requiring signal integrity and safety isolation.
• Test & Measurement: Precision signal conditioning for data acquisition in noisy environments.
• Power Supply Monitoring: Isolate feedback loops in high-voltage DC/DC converters.
• Legacy System Upgrades: Retrofit applications where modern SMD alternatives are impractical.

Conclusion of AD204JN

The AD204JN remains a viable choice for engineers seeking a rugged, through-hole isolation amplifier with proven performance in noise-critical applications. While obsolete, its low bias current, dual-channel integration, and robust isolation make it indispensable for maintaining or upgrading older industrial and medical systems. For new designs, consider modern alternatives, but the AD204JN’s reliability in harsh environments ensures its enduring relevance in niche applications.
