AD210BN

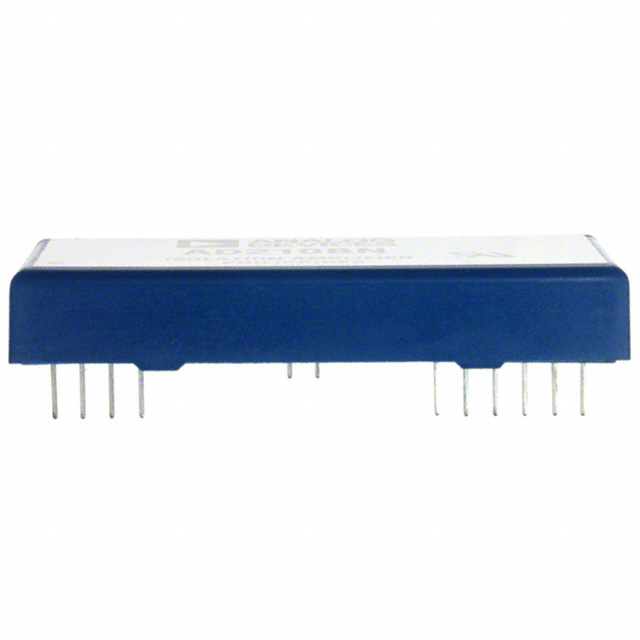

AD210BN Description

The AD210BN is an isolation amplifier from Analog Devices Inc., designed for applications requiring signal isolation between two sections of a circuit. This 12DIP IC operates within a supply voltage range of 14.25V to 15.75V and is compliant with the ROHS3 standard. With a slew rate of 1V/µs and a -3db bandwidth of 20 kHz, the AD210BN offers reliable performance in various electronic systems.

AD210BN Features

• Voltage Supply Span: 14.25V to 15.75V, ensuring stable operation across a wide range of input voltages.
• Isolation Amplifier Type: Provides electrical isolation between input and output, enhancing system safety and reliability.
• Low Input Bias Current: 30 pA, minimizing loading effects on the input signal and preserving signal integrity.
• Low Voltage Input Offset: 5 mV, ensuring accurate signal transmission with minimal distortion.
• Low Supply Current: 50mA, contributing to energy efficiency in power-sensitive applications.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating that the device can withstand high levels of moisture without degradation.
• REACH Status: REACH Unaffected, meaning it complies with the European Union's Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulations.
• Mounting Type: Through Hole, facilitating easy integration into existing PCB designs.
• Package: Tube, providing protection during storage and handling.

AD210BN Applications

The AD210BN is ideal for applications where signal isolation is crucial for safety, such as:

• Industrial Control Systems: Protecting sensitive control circuits from high-voltage spikes and noise.
• Medical Equipment: Ensuring patient safety by isolating patient-connected circuits from power supplies.
• Automotive Electronics: Isolating high-voltage battery systems from low-voltage control circuits.
• Telecommunications: Protecting signal integrity in data transmission lines by isolating ground loops.

Conclusion of AD210BN

The AD210BN from Analog Devices Inc. is a reliable and efficient isolation amplifier, suitable for a variety of applications requiring signal isolation. Its low power consumption, wide supply voltage range, and compliance with environmental regulations make it an excellent choice for designers looking to enhance system safety and performance. Although the product is now obsolete, its unique features and advantages make it a valuable component in legacy systems or where specific isolation requirements are needed.
