AD210JN

AD210JN Description

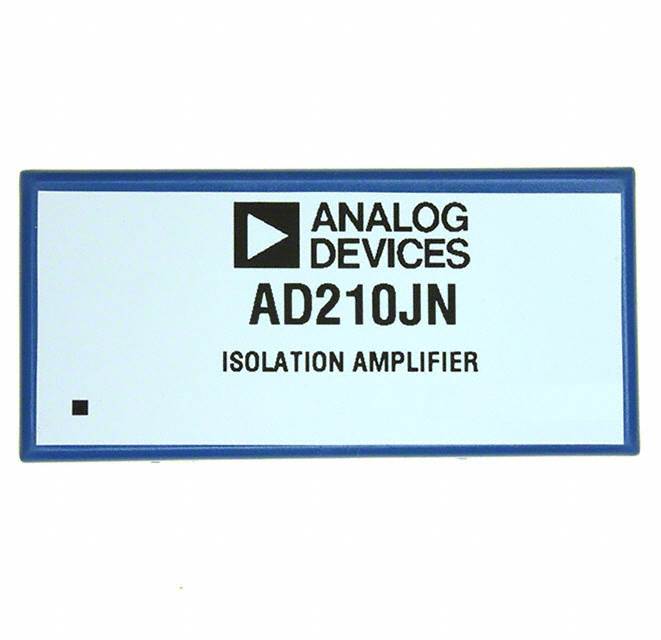

The AD210JN by Analog Devices Inc. is a high-performance isolation amplifier designed for precision signal conditioning in demanding environments. Packaged in a 12-pin DIP and supplied in a tube, this obsolete but reliable IC offers 20 kHz bandwidth, 1V/µs slew rate, and 5 mA output current per channel, making it suitable for applications requiring galvanic isolation. With a 14.25 V to 15.75 V supply range and 50 mA supply current, it ensures stable operation while maintaining low input bias current (30 pA) and 15 mV input offset voltage. Compliant with ROHS3 and REACH Unaffected, it adheres to stringent environmental standards.

AD210JN Features

• Isolation Amplifier: Provides galvanic isolation for noise immunity and safety in high-voltage systems.
• Wide Supply Range: Operates from ±14.25 V to ±15.75 V, accommodating industrial power supplies.
• Low Input Bias Current: 30 pA minimizes loading effects on sensitive signal sources.
• High Output Drive: 5 mA current output ensures compatibility with downstream circuitry.
• Robust Packaging: Through-hole 12DIP offers mechanical durability for harsh environments.
• Compliance: ROHS3 Compliant and EAR99 classified for global exportability.

AD210JN Applications

• Medical Equipment: Patient monitoring systems requiring signal isolation for safety.
• Industrial Automation: Isolating sensors in PLCs or motor control systems to prevent ground loops.
• Test & Measurement: High-accuracy signal conditioning in data acquisition systems.
• Power Electronics: Isolating feedback signals in inverters or converters to enhance reliability.
• Aerospace & Defense: Ruggedized signal processing in avionics or military hardware.

Conclusion of AD210JN

The AD210JN excels in applications demanding precision isolation, combining low noise, wide bandwidth, and high output drive in a robust package. While obsolete, its performance remains relevant for legacy systems or replacements requiring galvanic isolation and high-voltage tolerance. Engineers in medical, industrial, and aerospace sectors will find it ideal for maintaining signal integrity in electrically noisy or safety-critical environments. Its compliance with ROHS3 and REACH ensures alignment with modern environmental standards, making it a dependable choice for specialized designs.
