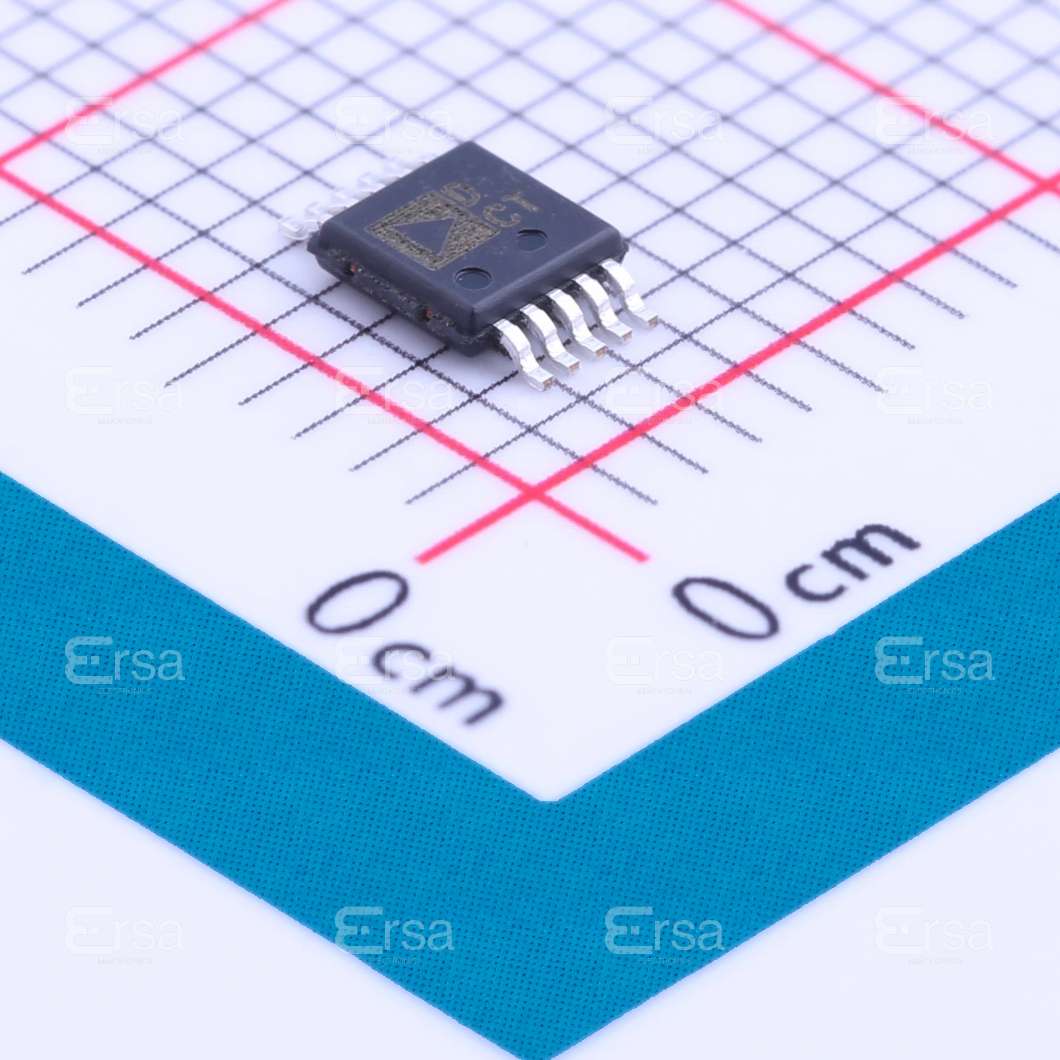

AD5172BRMZ10

AD5172BRMZ10 Description

The AD5172BRMZ10 from Analog Devices Inc. is a dual-channel, 10kΩ digital potentiometer with 256-tap resolution, designed for precision analog signal adjustment in embedded systems. It features an I2C interface for digital control, enabling seamless integration with microcontrollers and other digital circuits. Operating within a 2.7V to 5.5V supply range, this device is optimized for low-power applications while maintaining a ±20% resistance tolerance and a low 35ppm/°C temperature coefficient. The One-Time Programmable (OTP) memory ensures stable wiper settings after power cycles, making it ideal for calibration and trimming applications. Housed in a compact 10-MSOP package, it is suitable for space-constrained designs.

AD5172BRMZ10 Features

• Dual-channel potentiometer with 10kΩ resistance per channel.
• 256-tap resolution for fine-grained analog adjustments.
• I2C-compatible interface for easy digital control.
• Low wiper resistance (160Ω typ) minimizes signal distortion.
• OTP memory retains settings without external EEPROM.
• Wide voltage range (2.7V–5.5V) supports mixed-voltage systems.
• 35ppm/°C tempco ensures stable performance across temperatures.
• ROHS3 compliant and REACH unaffected for environmental compliance.

AD5172BRMZ10 Applications

• Industrial automation: Calibration of sensor signal chains.
• Audio equipment: Volume control and tone adjustment.
• Test & measurement: Precision voltage division and trimming.
• Embedded systems: Programmable gain amplifiers (PGAs).
• Power management: Feedback loop adjustment in DC-DC converters.

Conclusion of AD5172BRMZ10

The AD5172BRMZ10 stands out for its dual-channel design, OTP memory, and I2C interface, offering superior flexibility and reliability in digital potentiometer applications. Its low tempco and wide voltage range make it a robust choice for industrial, audio, and embedded systems where precision and stability are critical. The compact 10-MSOP package further enhances its suitability for high-density PCB layouts. For engineers seeking a high-performance digital potentiometer with non-volatile memory, the AD5172BRMZ10 delivers an optimal balance of features and performance.
