AD5300BRTZ-500RL7

AD5300BRTZ-500RL7 Description

The AD5300BRTZ-500RL7 is an 8-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed for applications requiring high precision and performance. This device features a string DAC architecture, allowing for flexible and efficient conversion of digital signals to analog outputs. With a supply voltage range of 2.7V to 5.5V for both analog and digital interfaces, the AD5300BRTZ-500RL7 is suitable for a wide range of electronic systems.

AD5300BRTZ-500RL7 Features

• 8-bit Resolution: The AD5300BRTZ-500RL7 offers 8-bit resolution, providing 256 discrete output levels for precise control in various applications.
• String DAC Architecture: This architecture enables the use of multiple devices in parallel to achieve higher resolution and improved performance.
• SPI and DSP Data Interfaces: The AD5300BRTZ-500RL7 supports both SPI and DSP data interfaces, providing flexibility in system design and compatibility with a wide range of microcontrollers and processors.
• Supply Voltage Range: With a supply voltage range of 2.7V to 5.5V for both analog and digital interfaces, the AD5300BRTZ-500RL7 can be used in a variety of power-sensitive applications.
• Settling Time: The device has a fast settling time of 6 microseconds, enabling rapid response in time-critical applications.

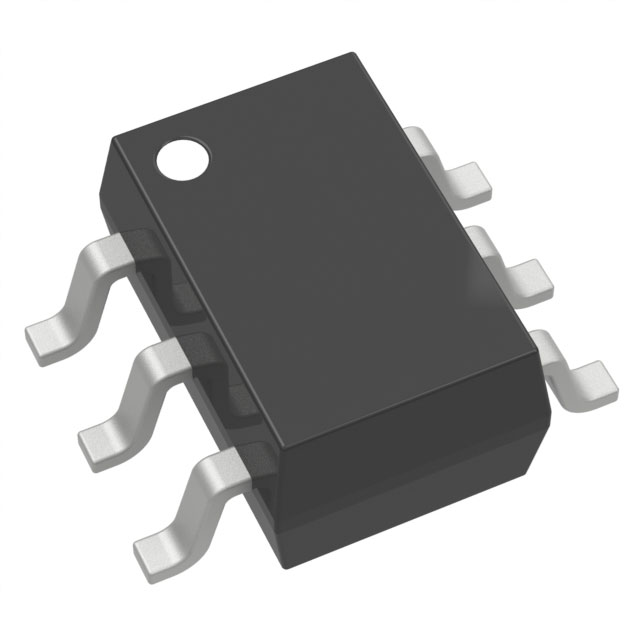

• Mounting Type: The AD5300BRTZ-500RL7 is available in a surface-mount package, making it suitable for high-density PCB designs.
• Supply Reference Type: The device uses an internal supply reference, simplifying the design and reducing the need for external components.

AD5300BRTZ-500RL7 Applications

The AD5300BRTZ-500RL7 is ideal for a variety of applications where precise digital-to-analog conversion is required. Some specific use cases include:

• Industrial Control Systems: The AD5300BRTZ-500RL7 can be used in industrial control systems to provide precise control of motor speeds, valve positions, and other variables.
• Audio Processing: In audio processing applications, the AD5300BRTZ-500RL7 can be used to convert digital audio signals to analog outputs for amplification and playback.
• Sensor Interfaces: The device can be used to interface with various sensors, converting their digital output to an analog signal for further processing or display.
• Medical Equipment: In medical equipment, the AD5300BRTZ-500RL7 can be used to control the output of devices such as infusion pumps, ensuring precise and accurate delivery of medication.

Conclusion of AD5300BRTZ-500RL7

The AD5300BRTZ-500RL7 is a versatile and high-performance 8-bit digital-to-analog converter from Analog Devices Inc. Its unique features, such as string DAC architecture, flexible data interfaces, and fast settling time, make it an ideal choice for a wide range of applications. With its compact surface-mount package and internal supply reference, the AD5300BRTZ-500RL7 offers a cost-effective and efficient solution for precise digital-to-analog conversion in various electronic systems.
