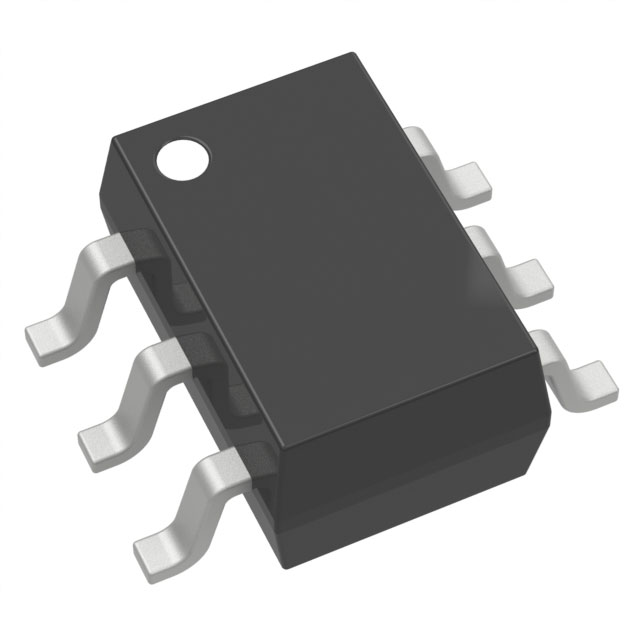

AD5301BRTZ-500RL7

AD5301BRTZ-500RL7 Description

The AD5301BRTZ-500RL7 is an 8-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed for applications requiring high precision and performance. This device features a string DAC architecture, which allows for a compact design while maintaining excellent linearity and accuracy. The AD5301BRTZ-500RL7 operates over a wide supply voltage range of 2.5V to 5.5V, making it suitable for various power-sensitive applications.

AD5301BRTZ-500RL7 Features

• 8-bit resolution: Provides 256 discrete output levels, suitable for applications requiring precise voltage control.
• I2C data interface: Enables easy integration with microcontrollers and other digital systems.
• Supply voltage range: 2.5V to 5.5V for both analog and digital supplies, offering flexibility in power management.
• Settling time: 8µs, ensuring rapid response to input changes.
• Low INL/DNL: ±0.15 LSB and ±0.02 LSB, respectively, for high accuracy and linearity.
• Surface mount packaging: Facilitates integration into compact, high-density designs.
• RoHS compliant: Adheres to environmental regulations, making it suitable for a wide range of applications.
• REACH unaffected: Compliant with the European Union's Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulations.

AD5301BRTZ-500RL7 Applications

The AD5301BRTZ-500RL7 is ideal for applications where precise voltage control is required, such as:

• Industrial control systems: For setting and adjusting voltage levels in motor drives and other control circuits.
• Medical equipment: In devices that require accurate voltage regulation for stable operation.
• Consumer electronics: For applications like audio processing, where precise volume control is needed.
• Test and measurement equipment: To generate reference voltages for calibration and testing purposes.

Conclusion of AD5301BRTZ-500RL7

The AD5301BRTZ-500RL7 is a versatile, high-performance 8-bit DAC that offers excellent linearity, accuracy, and flexibility in power management. Its compact design, low power consumption, and RoHS compliance make it an ideal choice for a wide range of applications, from industrial control systems to consumer electronics. With its unique features and advantages, the AD5301BRTZ-500RL7 stands out as a reliable solution for precise voltage control in various electronic systems.
