AD5344BRU

AD5344BRU Description

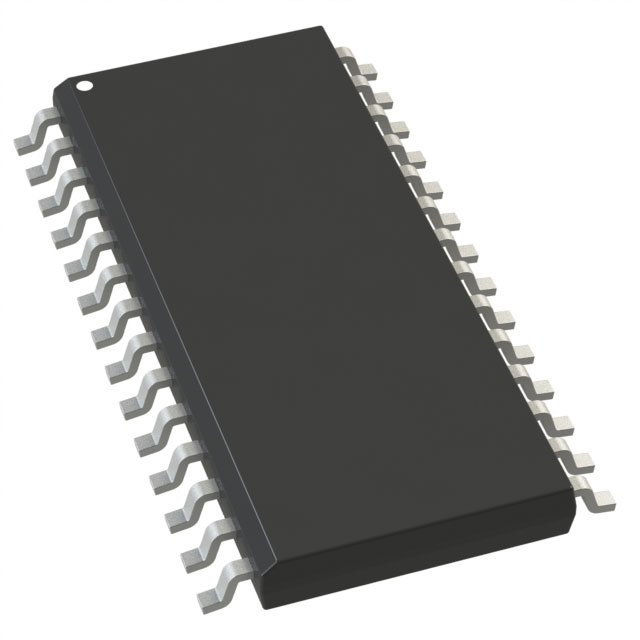

The AD5344BRU from Analog Devices Inc. is a 12-bit, quad-channel digital-to-analog converter (DAC) with voltage output, housed in a 28-TSSOP package. Designed for precision applications, it features a parallel data interface and operates with dual supply voltages (2.5V to 5.5V for both analog and digital domains). The device utilizes a string DAC architecture, ensuring high linearity with ±2 LSB INL and ±0.2 LSB DNL errors. With a 10µs settling time, it delivers fast and stable output transitions. The external reference requirement allows flexibility in setting the output range. Though marked obsolete, it remains a reliable choice for legacy systems requiring multi-channel DAC performance.

AD5344BRU Features

• 12-bit resolution with 4 independent DAC channels for multi-channel systems.
• Low INL/DNL errors (±2 LSB INL, ±0.2 LSB DNL) ensuring high accuracy.
• Wide supply range (2.5V–5.5V) compatible with mixed-voltage systems.
• Parallel interface for straightforward integration with microcontrollers or FPGAs.
• String DAC architecture provides monotonicity and low glitch energy.
• 10µs settling time for rapid response in dynamic applications.
• External reference support for adjustable full-scale output.
• Surface-mount TSSOP-28 package suitable for compact PCB designs.

AD5344BRU Applications

• Industrial automation: Precision control systems requiring multi-channel analog outputs.
• Test and measurement equipment: Signal generation and calibration due to high linearity.
• Legacy system upgrades: Replacement for older DACs in medical or aerospace systems.
• Audio processing: Multi-channel voltage-level adjustment in professional audio gear.
• Automotive electronics: Sensor calibration modules where stable voltage references are critical.

Conclusion of AD5344BRU

The AD5344BRU is a robust, quad-channel 12-bit DAC offering high precision, fast settling, and flexible voltage operation. While obsolete, its low INL/DNL errors, parallel interface, and multi-channel capability make it ideal for industrial, test, and legacy applications. Engineers seeking a proven solution for multi-channel voltage output with external reference adaptability will find this DAC a dependable choice, despite its discontinued status. For new designs, consider Analog Devices' newer DAC alternatives with enhanced features.
