AD5346BRUZ

AD5346BRUZ Description

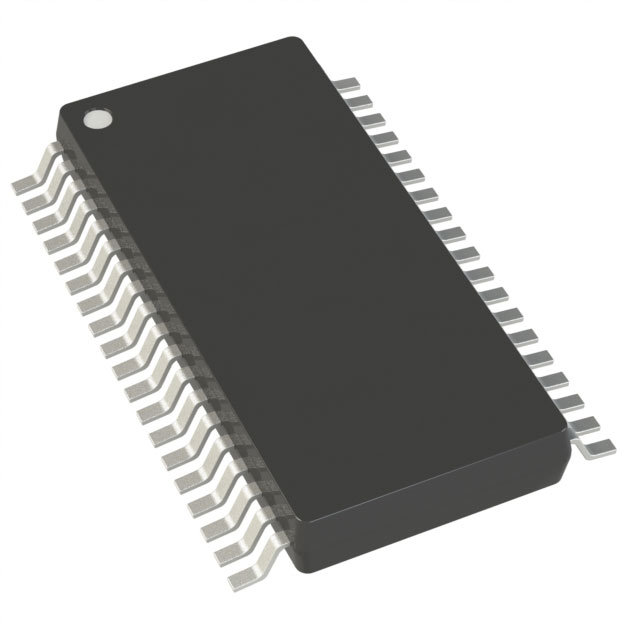

The AD5346BRUZ is a high-performance, 8-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed for applications requiring precise voltage control and high-resolution output. With its 38-TSSOP package, this device offers a compact and efficient solution for various electronic systems.

AD5346BRUZ Features

• 8-bit resolution: The AD5346BRUZ provides 8-bit resolution, allowing for 256 distinct output levels, ensuring accurate voltage control in applications such as audio processing, sensor interfaces, and precision measurement systems.
• Parallel data interface: The device features a parallel data interface, simplifying integration with microcontrollers and other digital systems.
• String DAC architecture: The AD5346BRUZ employs a string DAC architecture, which enables fast settling times and low power consumption, making it ideal for battery-powered applications.
• External reference input: The device supports an external reference input, allowing for flexible voltage range selection and compatibility with various reference sources.
• Fast settling time: With a settling time of 8µs, the AD5346BRUZ can quickly respond to input changes, making it suitable for applications requiring rapid voltage updates.
• Wide supply voltage range: The AD5346BRUZ operates with a supply voltage range of 2.5V to 5.5V, providing compatibility with a wide range of power sources and simplifying power management in various systems.
• RoHS compliant: The device is compliant with the RoHS3 directive, ensuring environmental compliance and supporting the use of the device in environmentally conscious applications.
• Moisture sensitivity level 3: The AD5346BRUZ has a moisture sensitivity level of 3, allowing for safe handling and storage in controlled environments.

AD5346BRUZ Applications

The AD5346BRUZ is ideal for a variety of applications where precise voltage control and high-resolution output are required. Some specific use cases include:

1. Audio processing: The device's 8-bit resolution and fast settling time make it suitable for applications such as audio mixing consoles, digital audio effects, and audio signal processing.
2. Sensor interfaces: The AD5346BRUZ can be used in sensor interfaces for applications such as industrial automation, process control, and environmental monitoring, where precise voltage control is critical for accurate sensor readings.
3. Precision measurement systems: The device's high resolution and low power consumption make it suitable for precision measurement systems, such as digital voltmeters and multimeters, where accurate voltage control is essential.
4. Battery-powered devices: The AD5346BRUZ's low power consumption and wide supply voltage range make it an ideal choice for battery-powered applications, such as portable electronic devices and wearables.

Conclusion of AD5346BRUZ

The AD5346BRUZ is a versatile and high-performance 8-bit digital-to-analog converter that offers a range of features and benefits for applications requiring precise voltage control and high-resolution output. Its compact 38-TSSOP package, fast settling time, and wide supply voltage range make it an ideal choice for a variety of applications, including audio processing, sensor interfaces, and precision measurement systems. With its RoHS compliance and moisture sensitivity level 3, the AD5346BRUZ is also suitable for environmentally conscious and controlled environments.
