AD580TH

AD580TH Description

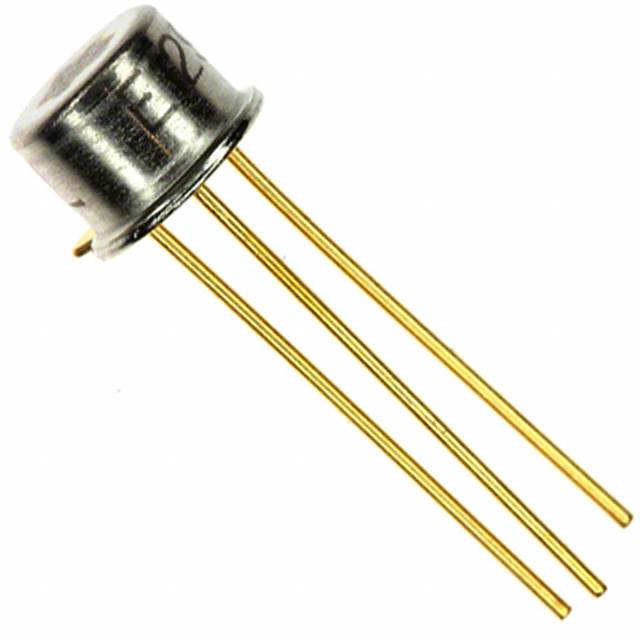

The AD580TH from Analog Devices Inc. is a high-precision, fixed-output 2.5V series voltage reference designed for demanding applications requiring stable and accurate voltage regulation. Housed in a TO-52-3 through-hole package, this IC delivers a tight ±0.4% tolerance and an ultra-low 25ppm/°C temperature coefficient, ensuring minimal drift across operating conditions. With an input voltage range of 4.5V to 30V, it supports a broad spectrum of power supplies while consuming only 1.5mA supply current. The AD580TH is ROHS3 compliant, REACH unaffected, and rated for unlimited moisture sensitivity (MSL 1), making it suitable for industrial and commercial environments.

AD580TH Features

• Fixed 2.5V output with ±0.4% initial accuracy for precision voltage referencing.
• Low temperature coefficient (25ppm/°C) ensures stability over temperature variations.
• Wide input voltage range (4.5V–30V) accommodates diverse power supply configurations.
• Low supply current (1.5mA) minimizes power consumption in energy-sensitive designs.
• 10mA output current capability supports direct driving of low-power loads.
• Through-hole (TO-52-3) packaging for robust mechanical integration.
• Industrial-grade reliability with ROHS3 compliance and MSL 1 (unlimited) rating.

AD580TH Applications

The AD580TH excels in systems requiring high-precision voltage references, such as:

• Data acquisition systems (DAS) and analog-to-digital converters (ADCs) where stable reference voltages are critical.
• Industrial instrumentation and test equipment demanding low drift and high accuracy.
• Power supply regulation circuits in automotive, aerospace, and medical devices.
• Portable electronics benefiting from its low power consumption and wide input range.
• Calibration tools and laboratory-grade measurement systems due to its exceptional tolerance and thermal performance.

Conclusion of AD580TH

The AD580TH stands out as a high-performance voltage reference with superior accuracy, thermal stability, and versatility. Its low drift, wide operating range, and robust packaging make it ideal for precision applications across industries. Whether in industrial control, instrumentation, or portable electronics, the AD580TH delivers reliable performance where voltage integrity is paramount. Analog Devices' commitment to quality ensures this component meets the stringent demands of modern electronic designs.
