AD6654BBCZ

AD6654BBCZ Description

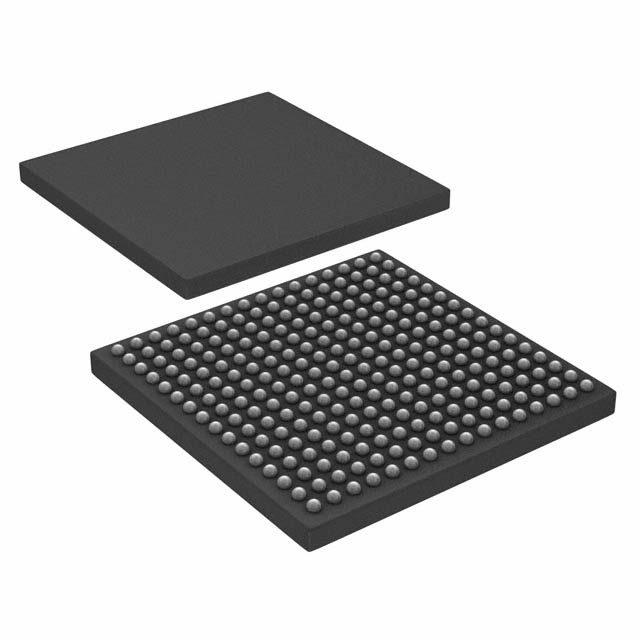

The AD6654BBCZ from Analog Devices Inc. is a high-performance 14-bit pipelined analog-to-digital converter (ADC) designed for demanding signal processing applications. It features a 92.16 MSPS sampling rate, enabling high-speed data acquisition with exceptional accuracy. The ADC operates with a differential input and supports a 5V analog supply alongside a 3V to 3.6V digital supply, ensuring compatibility with mixed-signal systems. Packaged in a 256-CSPBGA tray, it is optimized for surface-mount assembly and complies with ROHS3 and REACH environmental standards.

AD6654BBCZ Features

• 14-bit resolution with 1:1 S/H-to-ADC ratio for precise signal conversion.
• 92.16 MSPS sampling rate for high-speed data capture.
• Differential input architecture for improved noise immunity.
• Internal reference simplifies system design.
• Parallel data interface for straightforward integration with DSPs and FPGAs.
• Wide supply range: 5V (analog) and 3V–3.6V (digital) for flexible power management.
• Pipelined architecture balances speed and power efficiency.
• MSL3 (168 hours) moisture sensitivity rating for robust handling.

AD6654BBCZ Applications

The AD6654BBCZ excels in applications requiring high-speed, high-resolution analog-to-digital conversion, such as:

• Wireless communication systems (LTE, 5G base stations).
• Radar and defense electronics (signal intelligence, phased-array systems).
• Medical imaging (ultrasound, MRI signal processing).
• Test and measurement equipment (oscilloscopes, spectrum analyzers).
• Industrial automation (high-speed data acquisition, control systems).

Conclusion of AD6654BBCZ

The AD6654BBCZ stands out as a high-performance 14-bit ADC with a 92.16 MSPS sampling rate, making it ideal for high-speed, precision-critical applications. Its differential input, internal reference, and flexible power supply enhance system reliability, while its pipelined architecture ensures efficient operation. With ROHS3 compliance and a surface-mount CSPBGA package, it is well-suited for modern, compact electronic designs in communications, defense, and industrial sectors.
