AD7760BSVZ

AD7760BSVZ Description

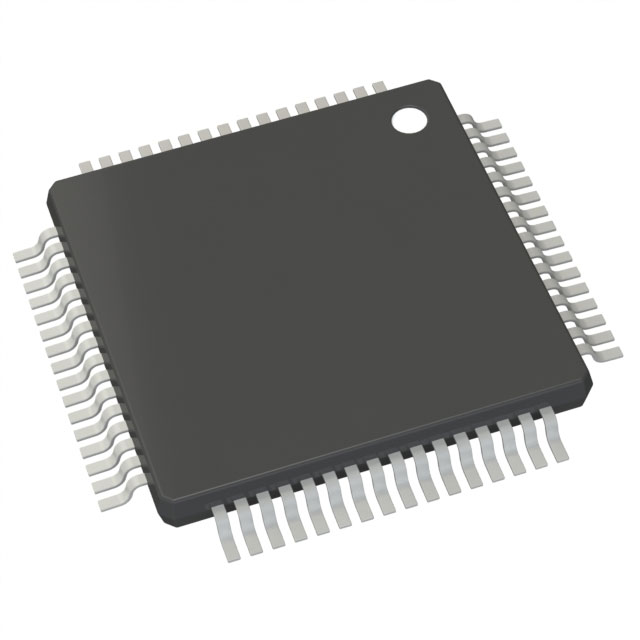

The AD7760BSVZ is a high-performance, 24-bit Sigma-Delta Analog-to-Digital Converter (ADC) from Analog Devices Inc., designed for demanding applications requiring high resolution and accuracy. This surface-mount device features a single A/D converter with a differential input, making it ideal for a wide range of signal processing tasks.

AD7760BSVZ Features

• Configuration: The AD7760BSVZ is a single-channel ADC, simplifying system design and reducing component count.
• Data Interface: It offers a parallel data interface, ensuring compatibility with a variety of digital systems.
• Voltage - Supply, Analog: The device operates over a wide supply voltage range of 2.5V to 5.25V, providing flexibility in power management.
• Product Status: Active, indicating ongoing availability and support.
• REACH Status: REACH Unaffected, ensuring compliance with European chemical regulations.
• Number of Inputs: 1, suitable for single-channel applications.
• Number of Bits: 24, providing high resolution and accuracy.
• RoHS Status: ROHS3 Compliant, adhering to environmental standards.
• Sampling Rate: 2.5M samples per second, enabling high-speed data acquisition.
• Moisture Sensitivity Level (MSL): 3 (168 Hours), indicating robustness against moisture.
• Input Type: Differential, offering improved signal integrity and noise rejection.
• Voltage - Supply, Digital: 2.5V, ensuring low power consumption.
• ECCN: EAR99, facilitating international trade.
• Mounting Type: Surface Mount, suitable for PCB integration.
• Reference Type: External, allowing for customization based on specific application requirements.
• HTSUS: 8542.39.0001, for customs purposes.
• Package: Tray, optimizing storage and handling.
• Base Product Number: AD7760, indicating the core product line.

AD7760BSVZ Applications

The AD7760BSVZ is well-suited for applications where high-resolution and accurate analog-to-digital conversion is critical. Some specific use cases include:

• Precision Measurement Instruments: Utilized in devices requiring precise voltage or current measurements, such as digital multimeters.
• Data Acquisition Systems: Ideal for systems that need to capture and digitize analog signals from sensors with high fidelity.
• Industrial Automation: Employed in control systems where accurate signal processing is essential for maintaining process parameters.
• Medical Equipment: Used in devices that require high-resolution signal analysis for diagnostics and monitoring.

Conclusion of AD7760BSVZ

The AD7760BSVZ stands out for its 24-bit resolution, differential input, and robust performance within a wide supply voltage range. Its active product status, REACH compliance, and RoHS3 compliance make it a reliable choice for new designs. With a sampling rate of 2.5M samples per second and an external reference, it offers flexibility and high performance, making it an excellent choice for precision measurement and high-speed data acquisition applications.
