AD7918BRU

AD7918BRU Description

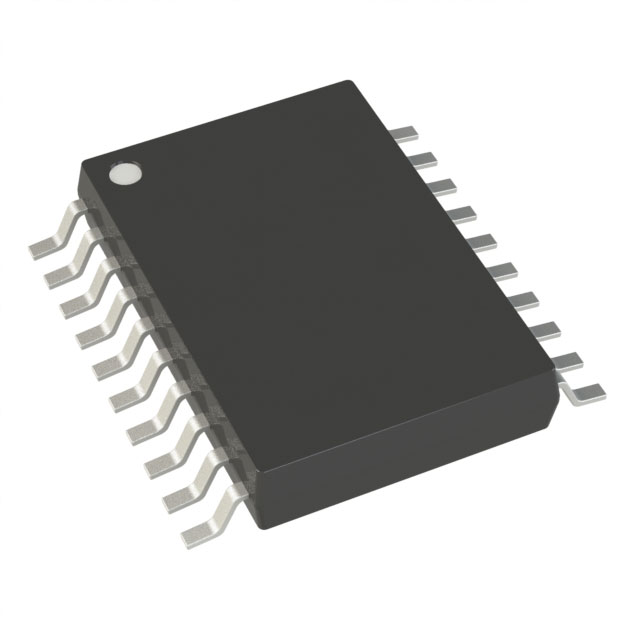

The AD7918BRU is a high-performance, 10-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed by Analog Devices Inc. This IC is housed in a 20-lead TSSOP package, making it suitable for surface-mount applications. The AD7918BRU features a single ADC with a sampling rate of 1 million samples per second (MSPS), providing rapid data acquisition for various applications. It supports both SPI and DSP data interfaces, ensuring compatibility with a wide range of digital systems.

The AD7918BRU operates with a supply voltage range of 2.7V to 5.25V for both analog and digital supplies, offering flexibility in power management. It includes eight single-ended inputs, allowing for multiple signal sources to be digitized. The device requires an external reference, which can be advantageous for applications requiring high precision and flexibility in reference voltage selection.

AD7918BRU Features

• High-Speed Sampling: With a sampling rate of 1 MSPS, the AD7918BRU ensures rapid data acquisition, making it suitable for applications requiring real-time signal processing.
• Flexible Data Interfaces: The support for both SPI and DSP interfaces provides compatibility with various digital systems, enhancing its versatility.
• Wide Supply Voltage Range: The ability to operate within a 2.7V to 5.25V supply voltage range for both analog and digital supplies offers flexibility in power management.
• Multiple Inputs: Eight single-ended inputs allow for the digitization of multiple signal sources, making it ideal for multi-channel applications.
• External Reference: The use of an external reference provides high precision and flexibility in reference voltage selection.
• Low Moisture Sensitivity: With a moisture sensitivity level (MSL) of 1 (unlimited), the AD7918BRU is suitable for a wide range of environmental conditions.
• Surface-Mount Packaging: The 20-lead TSSOP package is designed for surface-mount applications, ensuring ease of integration into modern electronic designs.

AD7918BRU Applications

The AD7918BRU is ideal for a variety of applications require that high-speed, high-precision data acquisition. Some specific use cases include:

• Data Acquisition Systems: The high sampling rate and multiple inputs make it suitable for systems that need to capture and process multiple analog signals in real-time.
• Industrial Automation: The device's robustness and wide supply voltage range make it ideal for industrial environments where precision and reliability are paramount.
• Medical Equipment: The high precision and flexibility in reference voltage selection are beneficial for medical devices that require accurate signal processing.
• Telecommunications: The AD7918BRU can be used in telecommunication systems for signal monitoring and control, leveraging its high-speed sampling capabilities.

Conclusion of AD7918BRU

The AD7918BRU is a versatile and high-performance 10-bit SAR ADC designed for applications requiring rapid and precise data acquisition. Its features, such as the high sampling rate, flexible data interfaces, and wide supply voltage range, make it a valuable component in various electronic systems. While the product is now obsolete, its unique capabilities and advantages over similar models ensure that it remains a relevant choice for specific applications. For those seeking a reliable and high-performance ADC, the AD7918BRU offers a robust solution with a proven track record in the electronics industry.
