AD7939BSUZ

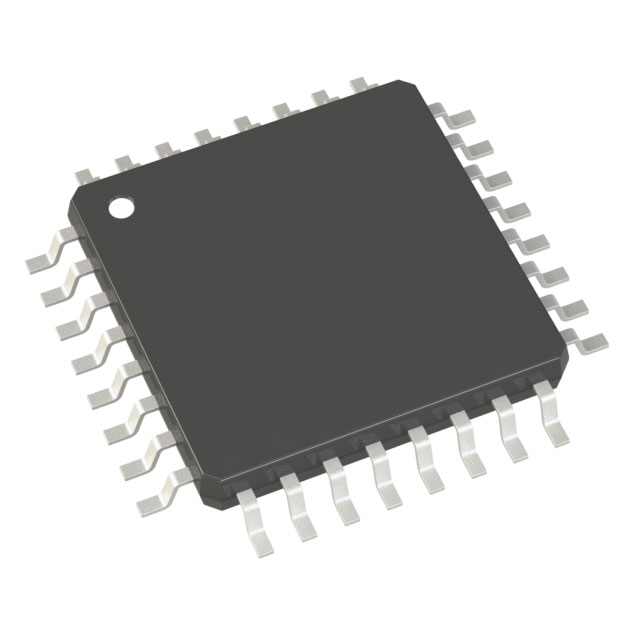

AD7939BSUZ Description

The AD7939BSUZ from Analog Devices Inc. is a high-performance, 10-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for precision data acquisition systems. Housed in a compact 32-lead TQFP package, it integrates a 1.5 MSPS sampling rate with low power consumption, making it ideal for applications requiring high-speed, accurate signal conversion. The device operates across a 2.7V to 5.25V dual supply range (analog and digital), ensuring compatibility with both 3V and 5V systems. It supports 4, 7, or 8 single-ended/differential inputs, offering flexibility in multi-channel designs. The ADC features an external/internal reference option, enhancing design adaptability. With a 1:1 sample-and-hold (S/H) to ADC ratio, it ensures minimal latency, critical for real-time systems.

AD7939BSUZ Features

• 10-bit SAR ADC with 1.5 MSPS throughput for high-speed data conversion.
• Flexible input configuration: 4/7/8 single-ended or differential channels.
• Dual supply range: 2.7V–5.25V (analog and digital), supporting mixed-voltage systems.
• Integrated reference: Optional external or internal reference for design versatility.
• Parallel data interface for straightforward integration with microcontrollers or FPGAs.
• Low power consumption: Optimized for battery-powered and portable applications.
• RoHS3 compliant and REACH unaffected, meeting environmental standards.
• 3 (168 hours) MSL rating, ensuring reliability in humid environments.

AD7939BSUZ Applications

The AD7939BSUZ excels in applications demanding high-speed, low-power, and multi-channel ADC performance:

• Industrial automation: Process control, PLCs, and sensor interfaces.
• Medical instrumentation: Portable diagnostic devices and patient monitoring systems.
• Communications equipment: Baseband signal processing and software-defined radio.
• Automotive systems: Battery management and onboard diagnostics.
• Consumer electronics: High-speed data acquisition in test and measurement tools.

Conclusion of AD7939BSUZ

The AD7939BSUZ stands out for its combination of speed, resolution, and input flexibility, making it a superior choice for precision ADC requirements. Its dual-supply operation, integrated reference, and parallel interface simplify system design, while its low power and small footprint cater to space-constrained applications. Whether in industrial, medical, or automotive systems, this ADC delivers reliable, high-performance conversion with minimal design overhead.
