AD8057AR

AD8057AR Description

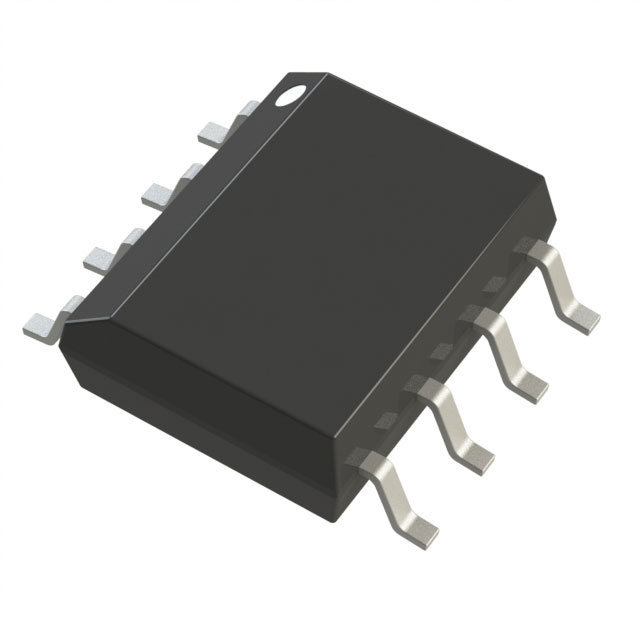

The AD8057AR from Analog Devices Inc. is a high-performance voltage feedback operational amplifier designed for precision applications requiring wide bandwidth and fast slew rates. Packaged in an 8-SOIC tube, this single-channel IC operates over a 3V to 12V supply range, making it versatile for both low-voltage and moderate-voltage systems. With a 325 MHz bandwidth and an ultra-fast 1150V/µs slew rate, it excels in high-speed signal processing. The device features a low input bias current (500 nA) and a modest input offset voltage (1 mV), ensuring accuracy in sensitive circuits. Although marked obsolete, its performance remains competitive for legacy or specialized designs.

AD8057AR Features

• Wide Bandwidth: 325 MHz -3dB bandwidth enables high-frequency signal amplification.
• Fast Slew Rate: 1150V/µs ensures minimal distortion in rapid signal transitions.
• Low Power Consumption: 6mA supply current balances performance and efficiency.
• Broad Supply Range: 3V to 12V operation supports diverse power configurations.
• Low Input Errors: 500 nA bias current and 1 mV offset voltage enhance precision.
• Robust Packaging: 8-SOIC surface-mount with MSL1 (Unlimited) moisture sensitivity for reliable assembly.

AD8057AR Applications

• High-Speed Data Acquisition: Ideal for ADC drivers and signal conditioning in test equipment.
• Video Amplification: Suitable for HD video buffers due to its wide bandwidth and fast response.
• Communications Systems: Used in RF and IF stages where low noise and high slew rates are critical.
• Medical Imaging: Enhances signal fidelity in ultrasound and imaging systems.
• Legacy Industrial Systems: A reliable choice for maintaining or upgrading older high-performance designs.

Conclusion of AD8057AR

The AD8057AR stands out for its exceptional speed and precision, making it a strong candidate for high-frequency analog systems. While obsolete, its combination of bandwidth, slew rate, and low power ensures continued relevance in niche applications. Engineers seeking a proven solution for video, communications, or data acquisition may find this amplifier a dependable choice, provided availability aligns with project needs.
