AD8066ARZ-RL

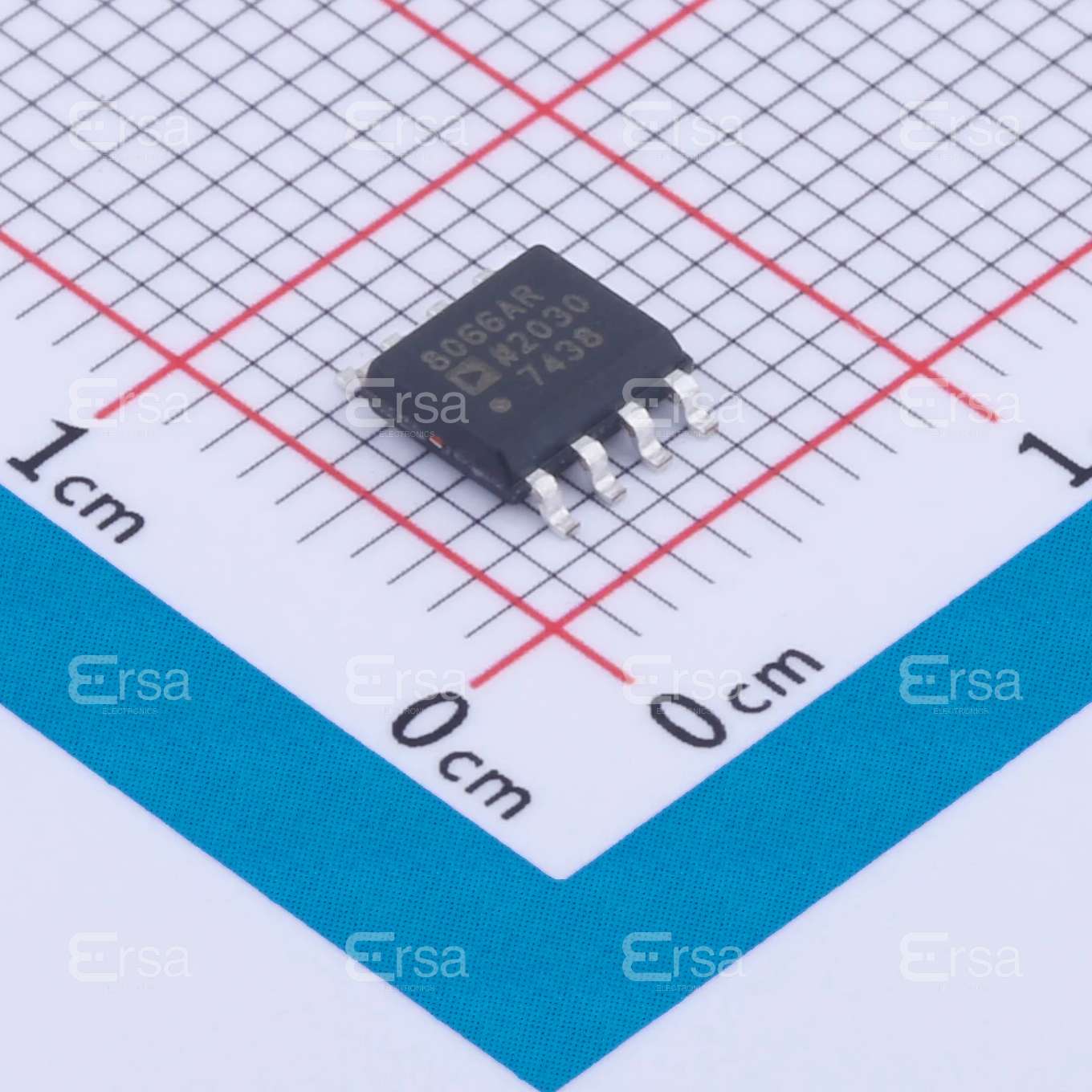

AD8066ARZ-RL Description

The AD8066ARZ-RL from Analog Devices Inc. is a high-performance, dual-channel voltage feedback operational amplifier designed for precision applications requiring wide bandwidth and low distortion. Packaged in an 8-SOIC and delivered in Tape & Reel (TR), it operates over a 5V to 24V supply range, making it versatile for both low and high-voltage systems. With a -3dB bandwidth of 155 MHz and an ultra-fast slew rate of 180V/µs, it excels in high-speed signal conditioning, ADC drivers, and active filtering. Its FastFET™ technology ensures low input bias current (3 pA) and minimal offset voltage (400 µV), critical for sensitive measurement systems.

AD8066ARZ-RL Features

• High-Speed Performance: 155 MHz bandwidth and 180V/µs slew rate for rapid signal processing.
• Low Power Consumption: Dual-channel operation at 6.6mA per channel, ideal for portable and power-sensitive designs.
• Wide Supply Range: Supports 5V to 24V, accommodating diverse power requirements.
• Low Input Bias Current: 3 pA minimizes errors in high-impedance circuits.
• Robust Output Drive: 30 mA/channel current output for driving capacitive loads.
• Surface-Mount Packaging: 8-SOIC with MSL 1 (Unlimited) reliability for automated assembly.
• RoHS3 & REACH Compliant: Environmentally friendly and suitable for global markets.

AD8066ARZ-RL Applications

• High-Speed Data Acquisition: Ideal for ADC/DAC buffers and precision signal chains.
• Active Filters & Equalizers: Low distortion suits video/RF filtering and communication systems.
• Medical Instrumentation: Low noise and bias current enhance sensor interfaces and ECG amplifiers.
• Test & Measurement Equipment: High bandwidth ensures accuracy in oscilloscopes and spectrum analyzers.
• Portable Electronics: Efficient power use benefits battery-operated devices like handheld analyzers.

Conclusion of AD8066ARZ-RL

The AD8066ARZ-RL stands out for its blend of speed, precision, and versatility, outperforming generic op-amps in demanding applications. Its FastFET™ architecture and robust electrical specs make it a top choice for engineers designing high-frequency, low-noise systems. Whether in medical, industrial, or communication fields, this amplifier delivers reliable performance while meeting stringent environmental standards.
