AD8224HACPZ-WP

AD8224HACPZ-WP Description

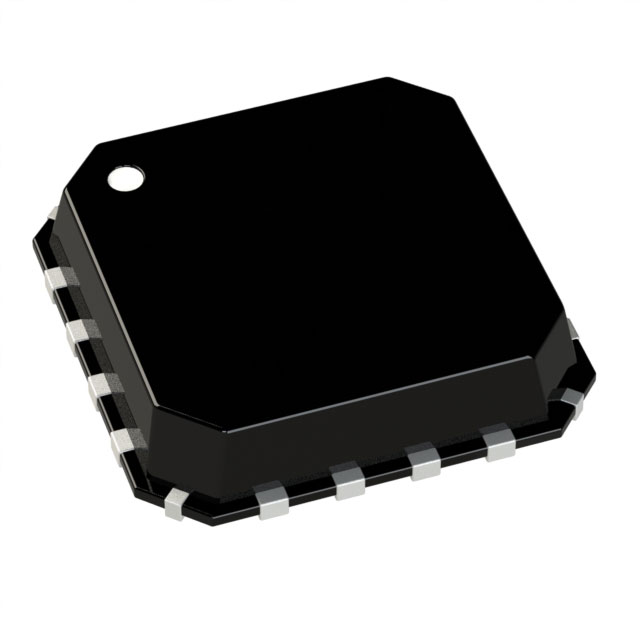

The AD8224HACPZ-WP is a high-performance instrumentation amplifier designed by Analog Devices Inc., suitable for a wide range of precision signal conditioning applications. This device features a dual-channel architecture, providing two independent instrumentation amplifiers in a compact 16-lead lead frame chip scale package (LFCSP It). operates from a supply voltage range of 4.5 V to 36 V, making it versatile for various power supply configurations. The AD8224HACPZ-WP is optimized for low input bias current (25 pA) and low input offset voltage (300 µV), ensuring high accuracy and stability in signal processing tasks. With a -3 dB bandwidth of 1.5 MHz and a slew rate of 2 V/µs, this amplifier is capable of handling high-frequency signals with minimal distortion. The device is REACH unaffected and RoHS3 compliant, adhering to stringent environmental and safety standards. It is also moisture sensitivity level 3 (168 hours) certified, making it suitable for surface mount applications in diverse environments.

AD8224HACPZ-WP Features

• Dual-Channel Architecture: The AD8224HACPZ-WP features two independent instrumentation amplifiers, allowing for simultaneous signal processing of multiple.
  channels- Wide Supply Voltage Range: Operates from 4.5 V to 36 V, providing flexibility in power supply requirements.
• Low Input Bias Current: With an input bias current of only 25 pA, this amplifier minimizes the impact of input current on the signal, ensuring high accuracy.
• Low Input Offset Voltage: A low input offset voltage of 300 µV ensures minimal error in signal amplification.
• High Bandwidth and Slew Rate: The -3 dB bandwidth of 1.5 MHz and a slew rate of 2 V/µs enable the amplifier to handle high-frequency signals effectively.
• Low Power Consumption: Each channel consumes only 750 µA, making the device energy-efficient.
• High Output Current: Each channel can drive up to 15 mA, providing robust output capabilities.
• Environmental Compliance: The device is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and safety standards.
• Moisture Sensitivity Level 3: Certified for surface mount applications in diverse environments, ensuring reliability and durability.

AD8224HACPZ-WP Applications

The AD8224HACPZ-WP is ideal for applications requiring high precision and low noise, such as:

• Precision Signal Conditioning: Ideal for applications where accurate signal amplification and conditioning are critical.
• Industrial Automation: Suitable for industrial control systems where high reliability and precision are required.
• Medical Equipment: Applicable in medical devices where low noise and high accuracy are paramount.
• Scientific Instruments: Used in scientific research equipment for precise measurements and data acquisition.
• High-Frequency Signal Processing: Ideal for applications involving high-frequency signals, such as communication systems and radar equipment.

Conclusion of AD8224HACPZ-WP

The AD8224HACPZ-WP from Analog Devices Inc. stands out as a versatile and high-performance instrumentation amplifier. Its dual-channel architecture, wide supply voltage range, low input bias current, and low input offset voltage make it an excellent choice for precision signal conditioning tasks. The device's high bandwidth and slew rate ensure it can handle high-frequency signals with minimal distortion, while its low power consumption and high output current capabilities make it energy-efficient and robust. The AD8224HACPZ-WP's environmental compliance and moisture sensitivity level 3 certification further enhance its reliability and durability in diverse applications. Whether used in industrial automation, medical equipment, or scientific instruments, the AD8224HACPZ-WP delivers exceptional performance and reliability, making it a preferred choice for engineers and designers in the electronics industry.
