AD8421ACPZ-R7

AD8421ACPZ-R7 Description

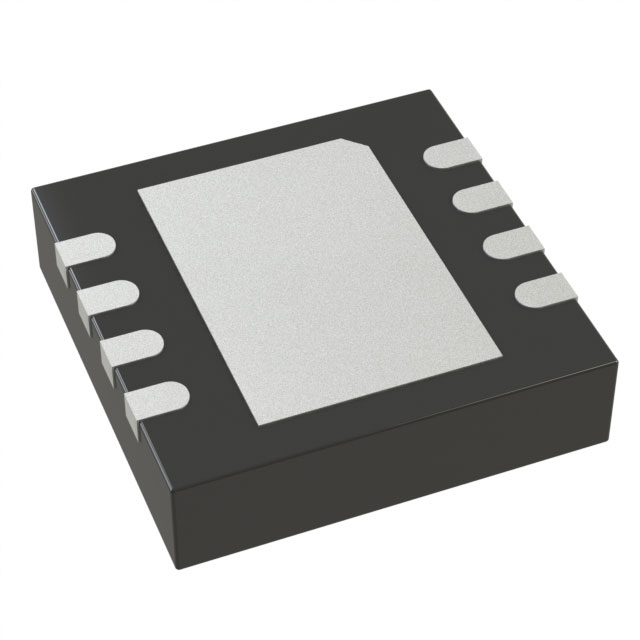

The AD8421ACPZ-R7 is a high-performance instrumentation amplifier designed for precision signal conditioning in a wide range of applications. Manufactured by Analog Devices Inc., this IC features an 8-lead leadless chip carrier (LFCSP) package, making it suitable for surface-mount applications. The AD8421ACPZ-R7 offers a broad supply voltage range from 5 V to 36 V, ensuring compatibility with various power supply configurations. Its low input bias current of 1 nA and input offset voltage of 70 µV make it ideal for high-precision measurements. With a -3 dB bandwidth of 10 MHz and a slew rate of 35 V/µs, the AD8421ACPZ-R7 delivers exceptional performance in dynamic signal processing applications.

AD8421ACPZ-R7 Features

• Wide Supply Voltage Range: Operates from 5 V to 36 V, providing flexibility in power supply design.
• Low Input Bias Current: 1 nA ensures minimal loading on high-impedance sources, preserving signal integrity.
• High Bandwidth and Slew Rate: 10 MHz bandwidth and 35 V/µs slew rate enable accurate processing of high-frequency signals.
• Precision Performance: 70 µV input offset voltage and 2 mA supply current contribute to high-precision signal conditioning.
• High Output Current: 65 mA per channel allows for driving substantial loads without additional buffering.
• Moisture Sensitivity Level (MSL) 3: Suitable for standard reflow soldering processes with a 168-hour exposure limit.
• Compliance: REACH unaffected and RoHS3 compliant, ensuring environmental and regulatory standards are met.
• Packaging: Tape & Reel (TR) packaging facilitates automated assembly processes.

AD8421ACPZ-R7 Applications

The AD8421ACPZ-R7 is well-suited for applications requiring high precision and dynamic performance. Key use cases include:

• Industrial Automation: Precision signal conditioning for sensors and actuators in harsh environments.
• Medical Equipment: High-precision signal processing for medical devices such as ECG and EEG monitors.
• Test and Measurement: Accurate signal amplification in oscilloscopes, spectrum analyzers, and other test equipment.
• Aerospace and Defense: Reliable signal conditioning in avionics, radar systems, and other critical applications.
• Automotive: High-precision signal processing for advanced driver-assistance systems (ADAS) and vehicle control units.

Conclusion of AD8421ACPZ-R7

The AD8421ACPZ-R7 is a versatile and high-performance instrumentation amplifier that stands out in its category due to its wide supply voltage range, low input bias current, and high bandwidth. Its precision performance and high output current make it an excellent choice for demanding applications in industrial, medical, and automotive sectors. With its compliance to environmental and regulatory standards, the AD8421ACPZ-R7 ensures long-term reliability and compatibility with modern manufacturing processes. For engineers seeking a robust and precise signal conditioning solution, the AD8421ACPZ-R7 is a reliable and efficient choice.
