AD8505ARJZ-RL

AD8505ARJZ-RL Description

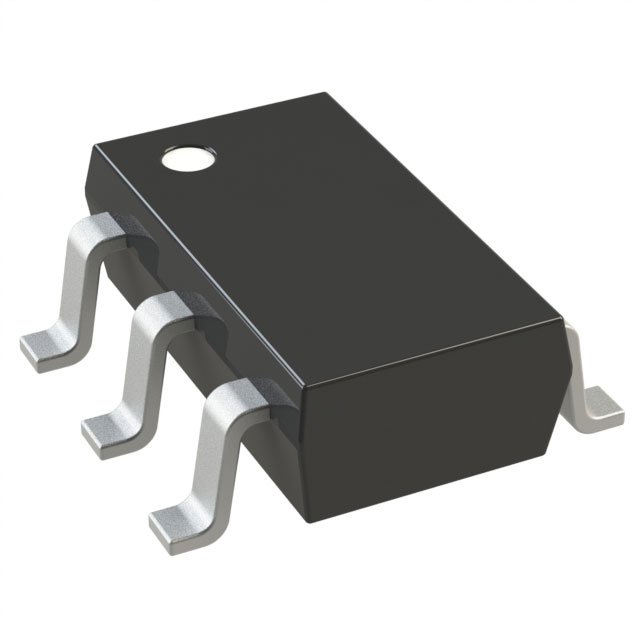

The AD8505ARJZ-RL is a general-purpose operational amplifier (op-amp) designed by Analog Devices Inc., a leading manufacturer in the electronics industry. This op-amp is housed in a surface-mount SOT23-5 package, making it ideal for compact and high-density PCB designs. It features a supply voltage range from 1.8 V to 5 V, which provides flexibility for various power supply configurations. The AD5805ARJZ-RL offers a slew rate of 0.013V/µs and a gain bandwidth product of 95 kHz, ensuring stable performance across a wide range of frequencies. With a supply current of only 15µA, this op-amp is highly power-efficient, making it suitable for battery-powered and low-power applications. The input bias current is extremely low at 1 pA, and the input offset voltage is 500 µV, which are critical parameters for precision signal processing. The AD8505ARJZ-RL is capable of sourcing or sinking up to 45 mA per channel, providing robust output drive capability. Despite its obsolescence, this op-amp remains a reliable choice for general-purpose applications due to its well-rounded performance characteristics.

AD8505ARJZ-RL Features

• Wide Supply Voltage Range: Operates from 1.8 V to 5 V, accommodating a variety of power supply requirements.
• Low Power Consumption: Consumes only 15µA of supply current, making it suitable for low-power and battery-operated devices.
• High Precision: Features an input bias current of 1 pA and an input offset voltage of 500 µV, ensuring high accuracy in signal processing.
• Robust Output Drive: Capable of sourcing or sinking up to 45 mA per channel, providing strong output drive capability.
• Surface-Mount Packaging: Housed in a compact SOT23-5 package, ideal for space-constrained designs.
• General-Purpose Amplifier: Suitable for a wide range of applications due to its versatile performance characteristics.

AD8505ARJZ-RL Applications

The AD8505ARJZ-RL is well-suited for a variety of applications where power low consumption, high precision, and robust performance are required. Some specific use cases include:

• Battery-Powered Devices: Ideal for applications where power efficiency is critical, such as portable electronics and IoT devices.
• Signal Conditioning: Used in sensor interfaces and signal processing circuits where low input bias current and low offset voltage are essential.
• Consumer Electronics: Suitable for general-purpose amplification tasks in consumer electronics, such as audio and video signal processing.
• Industrial Control Systems: Provides reliable amplification and signal processing in various industrial control applications.

Conclusion of AD8505ARJZ-RL

The AD8505ARJ-ZRL is a versatile general-purpose op-amp that offers a combination of low power consumption, high precision, and robust performance. Despite its obsolescence, it remains a reliable choice for applications requiring a wide supply voltage range, low input bias current, and strong output drive capability. Its compact surface-mount packaging makes it suitable for high-density PCB designs, while its general-purpose nature ensures it can be used in a wide range of applications. For engineers and designers seeking a reliable and efficient op-amp solution, the AD8505ARJZ-RL is a worthy consideration.
