AD8659ACPZ-R7

AD8659ACPZ-R7 Description

The AD8659ACPZ-R7 is a high-performance CMOS operational amplifier from Analog Devices Inc., designed for a wide range of precision analog applications. This quad-channel amplifier features a supply voltage range from 2.7 V to 18 V, making it suitable for both low-power and high-voltage applications. With a gain bandwidth product of 200 kHz and a -3 dB bandwidth of 305 kHz, the AD8659ACPZ-R7 offers excellent frequency response characteristics. Its low input bias current of 5 pA and low input offset voltage of 350 µV ensure high precision and stability in signal processing. The amplifier's slew rate of 0.08 V/µs and maximum output current of 12 mA per channel further enhance its performance in various electronic circuits.

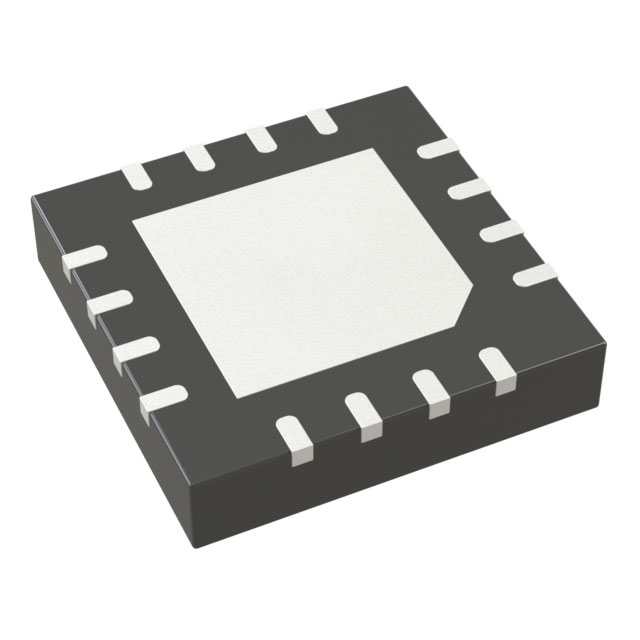

The AD8659ACPZ-R7 is packaged in a 16-lead lead frame chip scale package (LFCSP) and is available in tape and reel (TR) format, ideal for surface mount applications. It is compliant with RoHS3 and REACH regulations, ensuring environmental safety and sustainability. The moisture sensitivity level (MSL) of 3 (168 hours) makes it suitable for a variety of manufacturing processes.

AD8659ACPZ-R7 Features

• Quad-Channel Amplification: The AD8659ACPZ-R7 features four independent amplifiers, allowing for efficient and compact circuit designs.
• Wide Supply Voltage Range: Operates from 2.7 V to 18 V, providing flexibility for various power supply configurations.
• Low Power Consumption: With a supply current of 18 µA across all four channels, it is ideal for battery-powered and low-power applications.
• High Precision: Low input bias current (5 pA) and low input offset voltage (350 µV) ensure accurate signal amplification.
• High Bandwidth: A gain bandwidth product of 200 kHz and -3 dB bandwidth of 305 kHz make it suitable for high-frequency applications.
• Robust Output Capability: Each channel can drive up to 12 mA, providing strong output capability for driving various loads.
• Environmental Compliance: RoHS3 and REACH compliance ensure that the device meets the latest environmental standards.
• Surface Mount Packaging: The 16LFCSP package is ideal for automated assembly processes, enhancing manufacturing efficiency.

AD8659ACPZ-R7 Applications

The AD8659ACPZ-R7 is well-suited for a variety of applications due to its high precision, low power consumption, and wide operating voltage range. Some specific use cases include:

• Precision Signal Conditioning: Ideal for applications requiring high accuracy and low noise, such as sensor interfaces and analog signal processing.
• Battery-Powered Devices: The low power consumption makes it suitable for portable and battery-powered equipment where energy efficiency is critical.
• High-Frequency Applications: The high bandwidth and slew rate make it suitable for applications requiring fast signal processing, such as high-speed data acquisition systems.
• Industrial Control Systems: The wide supply voltage range and robust output capability make it suitable for industrial automation and control systems.
• Medical Equipment: The high precision and low noise characteristics are beneficial for medical devices requiring accurate signal processing, such as ECG and EEG machines.

Conclusion of AD8659ACPZ-R7

The AD8659ACPZ-R7 from Analog Devices Inc. is a versatile and high-performance CMOS operational amplifier designed for precision analog applications. Its wide supply voltage range, low power consumption, and high precision make it an excellent choice for a variety of electronic circuits. The quad-channel design allows for efficient and compact circuit designs, while the high bandwidth and robust output capability ensure reliable performance in high-frequency and demanding applications. With its environmental compliance and surface mount packaging, the AD8659ACPZ-R7 is a reliable and sustainable choice for modern electronics design.
