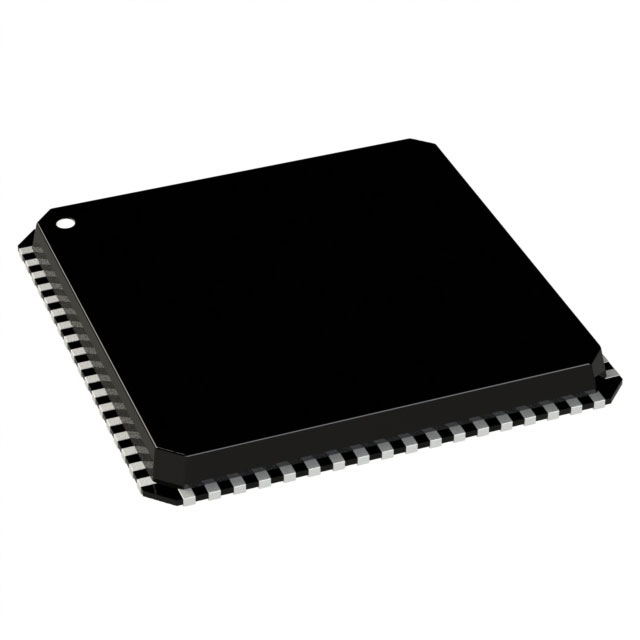

AD9142BCPZRL

AD9142BCPZRL Description

The AD9142BCPZRL is a high-performance, 16-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed for demanding applications requiring precision and speed. This DAC is part of the TxDAC+® series, known for its superior performance and reliability. The AD9142BCPZRL features an oversampling interpolating architecture, providing excellent linearity and dynamic performance. It supports a differential output, enhancing signal integrity and reducing noise. The device operates with a digital supply voltage range of 1.7V to 1.9V and an analog supply voltage range of 3.13V to 3.47V, making it suitable for a wide range of power supply configurations.

AD9142BCPZRL Features

• High Resolution: 16-bit resolution ensures precise control and conversion of digital signals to analog outputs.
• Oversampling Interpolating Architecture: This advanced architecture enhances signal quality and reduces quantization noise, making it ideal for high-fidelity applications.
• Differential Output: The differential output configuration minimizes common-mode noise and improves signal-to-noise ratio (SNR), crucial for high-precision applications.
• Fast Settling Time: With a typical settling time of 20ns, the AD9142BCPZRL can quickly stabilize its output, enabling high-speed data conversion.
• Wide Supply Voltage Range: The digital supply voltage range of 1.7V to 1.9V and analog supply voltage range of 3.13V to 3.47V offer flexibility in power supply design.
• External and Internal Reference: The option for both external and internal reference sources provides flexibility and accuracy in various operating conditions.
• Surface Mount Packaging: The 72LFCSP package is designed for surface mount technology, facilitating compact and reliable integration into modern electronic systems.
• Moisture Sensitivity Level 3: The MSL 3 rating ensures the device can withstand up to 168 hours of exposure to moisture, making it suitable for a variety of environmental conditions.

AD9142BCPZRL Applications

The AD9142BCPZRL is well-suited for a variety of high-performance applications, including:

• Communication Systems: Ideal for baseband signal processing in wireless communication systems, where high-speed and high-precision DACs are essential for accurate signal transmission.
• Aerospace and Defense: Used in radar and electronic warfare systems, where the device's high resolution and fast settling time are critical for real-time signal processing.
• Medical Imaging: In MRI and CT scanners, the AD9142BCPZRL's precision and speed contribute to high-quality image reconstruction.
• Industrial Automation: For precision control systems, where accurate analog output is necessary for process control and monitoring.
• Scientific Instruments: Used in oscilloscopes and spectrum analyzers, where high-fidelity signal conversion is required for accurate measurements.

Conclusion of AD9142BCPZRL

The AD9142BCPZRL from Analog Devices Inc. stands out as a high-performance DAC, offering a combination of precision, speed, and flexibility that makes it suitable for a wide range of demanding applications. Its oversampling interpolating architecture, differential output, and fast settling time provide significant advantages over similar models. Despite being marked as obsolete, the AD9142BCPZRL remains a reliable choice for applications requiring high-fidelity signal conversion. Its robust design and wide supply voltage range ensure compatibility with various power supply configurations, making it a versatile component in modern electronic systems.
