AD974AR

AD974AR Description

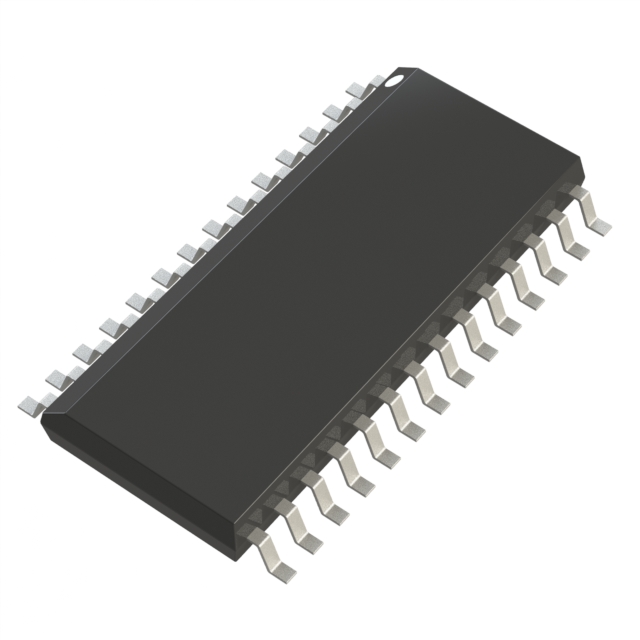

The AD974AR is a high-performance Data Acquisition System (DAS) designed by Analog Devices Inc. This obsolete yet highly regarded IC offers a robust solution for applications requiring precise data acquisition. The AD974AR is housed in a surface-mount 28SOIC package, making it suitable for compact and space-constrained designs. It operates on a voltage supply range of 4.75V to 5.25V, ensuring compatibility with a wide range of analog and digital power sources.

AD974AR Features

• Resolution: The AD974AR boasts a 16-bit resolution, providing high precision in data acquisition. This level of resolution ensures accurate and detailed data capture, making it ideal for applications where precision is paramount.
• Sampling Rate: With a sampling rate of 200,000 samples per second (200k SPS), the AD974AR can handle high-frequency signals efficiently. This high sampling rate allows for real-time data processing and analysis, crucial for dynamic and rapidly changing signals.
• Data Interface: The AD974AR utilizes a serial data interface, simplifying the connection and communication with other system components. This interface reduces the number of pins required, leading to a more streamlined and less complex design.
• Moisture Sensitivity Level (MSL): Rated at MSL 3 (168 hours), the AD974AR is suitable for environments with varying humidity levels, ensuring reliable performance even in less-than-ideal conditions.
• Package Type: The AD974AR is packaged in a tube, which offers protection and ease of handling during assembly and storage.

AD974AR Applications

The AD974AR is well-suited for a variety of applications across multiple industries, including:

• Industrial Automation: In industrial settings, the AD974AR can be used to monitor and control various processes, ensuring accurate and reliable data acquisition for process control systems.
• Medical Equipment: For medical devices that require high-precision data capture, such as diagnostic equipment, the AD974AR provides the necessary resolution and sampling rate to ensure accurate readings.
• Telecommunications: In telecom applications, the AD974AR can be employed for signal processing and monitoring, providing high-speed data acquisition for real-time analysis.
• Aerospace and Defense: The robustness and precision of the AD974AR make it suitable for aerospace and defense applications where reliability and accuracy are critical.

Conclusion of AD974AR

The AD974AR is a versatile and high-performance Data Acquisition System (DAS) that offers significant advantages over similar models. Its 16-bit resolution and 200k SPS sampling rate ensure precise and efficient data capture, making it ideal for a wide range of applications. The serial data interface and surface-mount package further enhance its usability and integration into various systems. Despite being obsolete, the AD974AR remains a reliable choice for applications requiring high precision and robust performance.
