AD976BRZRL

AD976BRZRL Description

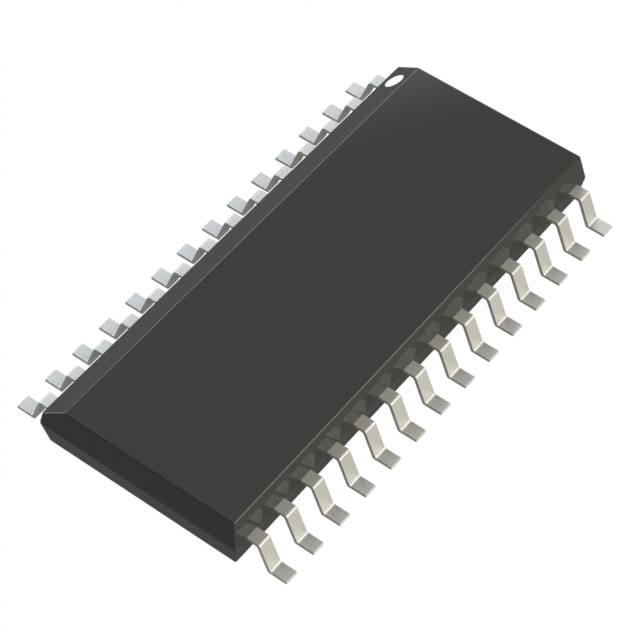

The AD976BRZRL is a high-performance analog-to-digital converter (ADC) from Analog Devices Inc., designed for precision data acquisition applications. This 16-bit ADC features a sampling rate of 100 kSPS (kilo samples per second) and employs a successive approximation register (SAR) architecture to deliver accurate and reliable digital outputs. The AD976BRZRL is housed in a 28-lead SOIC package, making it suitable for surface-mount applications. It operates with a 5V analog and digital supply voltage, ensuring compatibility with a wide range of systems. The device supports both external and internal reference types, providing flexibility in reference voltage selection. The AD976BRZRL is REACH unaffected and RoHS3 compliant, adhering to stringent environmental and safety standards. With a moisture sensitivity level (MSL) of 3 (168 hours), it is well-suited for various industrial and commercial environments.

AD976BRZRL Features

• High Resolution and Precision: The 16-bit resolution ensures high precision in converting analog signals to digital format, making it ideal for applications requiring detailed signal analysis.
• Fast Sampling Rate: With a sampling rate of 100 kSPS, the AD976BRZRL can quickly capture and process analog signals, providing real-time data for critical applications.
• SAR Architecture: The successive approximation register architecture offers a balance between speed and accuracy, ensuring reliable performance across a wide range of input signals.
• Flexible Reference Options: The ability to use either an external or internal reference allows designers to optimize the ADC's performance based on specific application requirements.
• Parallel Data Interface: The parallel data interface facilitates straightforward integration with microcontrollers and other digital systems, simplifying overall system design.
• Single-Ended Input: The single-ended input type simplifies signal routing and reduces complexity in the analog front-end design.
• Compliance and Safety: REACH unaffected and RoHS3 compliance ensure that the AD976BRZRL meets environmental and safety standards, making it suitable for global deployment.
• Moisture Sensitivity Level: MSL 3 (168 hours) ensures the device can withstand varying environmental conditions, enhancing its reliability in diverse applications.

AD976BRZRL Applications

The AD976BRZRL is well-suited for a variety of applications where high precision and fast data acquisition are critical. Some specific use cases include:

• Industrial Automation: In industrial settings, the AD976BRZRL can be used for precision measurement and control systems, ensuring accurate monitoring of process parameters.
• Medical Equipment: For medical devices requiring high-resolution data acquisition, such as patient monitoring equipment, the AD976BRZRL provides reliable and precise signal conversion.
• Test and Measurement Instruments: In laboratory and industrial test environments, the AD976BRZRL can be integrated into oscilloscopes, spectrum analyzers, and other test equipment to capture and analyze signals with high accuracy.
• Data Acquisition Systems: The AD976BRZRL is ideal for general-purpose data acquisition systems where high-speed and high-resolution signal conversion is necessary.
• Automotive Electronics: In automotive applications, the AD976BRZRL can be used for sensor data acquisition, ensuring precise monitoring of critical vehicle systems.

Conclusion of AD976BRZRL

The AD976BRZRL from Analog Devices Inc. is a robust and versatile ADC that offers high precision and fast sampling capabilities. Its 16-bit resolution and 100 kSPS sampling rate make it suitable for a wide range of applications, from industrial automation to medical equipment. The SAR architecture ensures reliable performance, while the flexible reference options and parallel data interface simplify integration into various systems. With its compliance to environmental and safety standards, the AD976BRZRL is a reliable choice for designers seeking a high-performance ADC. Whether used in test and measurement instruments or automotive electronics, the AD976BRZRL delivers the precision and speed required for modern data acquisition systems.
