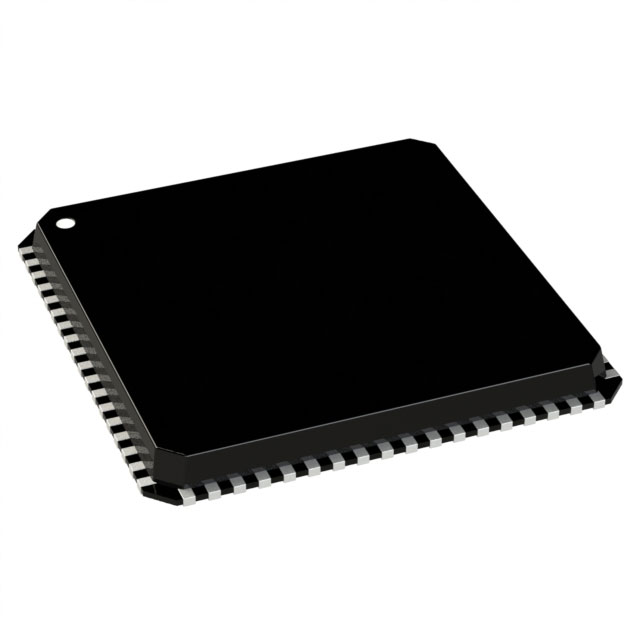

AD9780BCPZ

701-AD9780BCPZ
PDF Datasheet
IC DAC 12BIT A-OUT 72LFCSP
7 Weeks

Why Choose Us?

Professional Platform

B2B & B2C purchasing

Delivery at full speed

1-2 days delivery

Wide variety

Original manufacturers

365 days guarantee

Responsible quality
APAC
ISO9001
Quality Policy
ISO45001
ISO14001
Original

Tech Specifications

Number of D/A Converters
2
Power Supply Type
Analog and Digital
Data Interface
LVDS - Parallel
PPAP
No
Voltage - Supply, Analog
3.13V ~ 3.47V
Product Status
Active
Automotive
No
Supplier Package
LFCSP EP
Show More

AD9780BCPZ Description

AD9780BCPZ Description

The AD9780BCPZ is a high-performance, 12-bit, dual channel Digital-to-Analog Converter (DAC) from Analog Devices Inc., a leading manufacturer in the electronics industry. This IC is designed for applications requiring high precision and accuracy in analog signal generation. The AD9780BCPZ operates with a supply voltage range of 3.13V to 3.47V for the analog section and 1.7V to 1.9V or 3.13V to 3.47V for the digital section, making it suitable for a wide range of power supply options.

AD9780BCPZ Features

  • Dual Channel DAC: With two 12-bit DACs, the AD9780BCPZ can generate two independent analog outputs, providing flexibility in applications requiring multiple analog signals.
  • Low INL/DNL: The device boasts an excellent integral nonlinearity (INL) of ±0.25 LSB and differential nonlinearity (DNL) of ±0.13 LSB, ensuring high accuracy and precision in signal conversion.
  • External/Internal Reference: The AD9780BCPZ supports both external and internal references, offering design flexibility and the ability to optimize performance based on specific application requirements.
  • Differential Output: The device features differential outputs, which can reject common-mode noise and improve signal integrity in noisy environments.
  • Surface Mount: The AD9780BCPZ is designed for surface mount applications, making it suitable for PCB integration in modern electronic devices.
  • RoHS3 Compliance: The device is compliant with the RoHS3 directive, ensuring environmental responsibility and compatibility with regulations restricting hazardous substances in electronic products.

AD9780BCPZ Applications

The AD9780BCPZ is ideal for a variety of applications where high-precision analog signal generation is required:

  • Communication Systems: The device can be used in communication systems for signal processing and generation, benefiting from its low INL/DNL and differential output capabilities.
  • Industrial Automation: In industrial automation, the AD9780BCPZ can be used for precise control and monitoring of processes, leveraging its dual channel and low noise performance.
  • Audio Applications: For high-fidelity audio applications, the AD9780BCPZ can provide accurate digital-to-analog conversion, ensuring clear and distortion-free audio output.
  • Test and Measurement Equipment: The device's high precision and dual channel capabilities make it suitable for test and measurement equipment, where accurate signal generation is critical.

Conclusion of AD9780BCPZ

The AD9780BCPZ is a versatile and high-performance dual channel DAC that offers excellent accuracy, flexibility, and reliability. Its unique features, such as low INL/DNL, differential output, and dual channel capability, make it an ideal choice for a wide range of applications in communication, industrial automation, audio, and test and measurement. With its RoHS3 compliance and surface mount design, the AD9780BCPZ is a future-proof solution for high-precision digital-to-analog conversion in the electronics industry.

FAQ

What operating temperature range does AD9780BCPZ support?
AD9780BCPZ has an operating temperature range of -40°C ~ 85°C.
