AD9789BBCZ

AD9789BBCZ Description

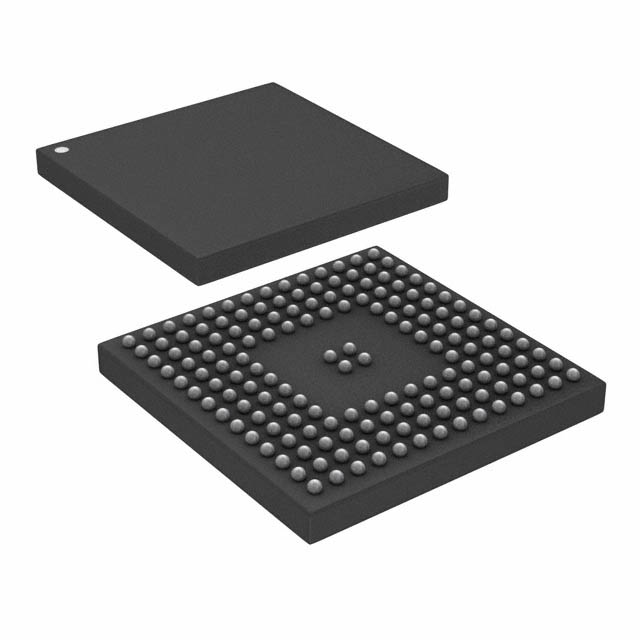

The AD9789BBCZ from Analog Devices Inc. is a high-performance 14-bit digital-to-analog converter (DAC) designed for precision signal generation in demanding applications. Packaged in a 164-CSPBGA and featuring a surface-mount design, this DAC operates with an oversampling interpolating architecture, ensuring superior dynamic performance and reduced noise. The device supports differential outputs and offers flexible reference options (external or internal), making it adaptable to various system requirements. With a settling time of 13ns (typical), it delivers fast and accurate signal conversion, ideal for high-speed applications.

AD9789BBCZ Features

• 14-bit resolution for high-precision analog output.
• Dual-supply operation: Analog (3.14V–3.47V) and digital (1.43V–1.58V, 1.71V–1.89V, 3.14V–3.47V) voltage ranges.
• Oversampling interpolating DAC architecture enhances linearity and reduces quantization noise.
• Differential output for improved noise immunity and signal integrity.
• External/internal reference flexibility for system optimization.
• Fast settling time (13ns typ) enables high-speed signal processing.
• RoHS3 compliant and REACH unaffected, meeting environmental standards.
• 164-CSPBGA package ensures compact integration in space-constrained designs.

AD9789BBCZ Applications

The AD9789BBCZ excels in applications requiring high-speed, high-resolution signal generation, such as:

• Wireless communication systems (e.g., LTE, 5G base stations) for RF signal synthesis.
• Test and measurement equipment requiring precise waveform generation.
• Medical imaging systems (e.g., ultrasound) where low noise and high fidelity are critical.
• Radar and defense systems for fast, accurate signal processing.
• Industrial automation in high-speed control loops.

Conclusion of AD9789BBCZ

The AD9789BBCZ stands out as a high-performance 14-bit DAC with low noise, fast settling time, and flexible supply/reference options. Its oversampling architecture and differential output make it ideal for high-speed, precision-critical applications in communications, medical, and industrial sectors. With Analog Devices' reputation for reliability, this DAC is a robust choice for engineers seeking exceptional dynamic performance and integration flexibility.
