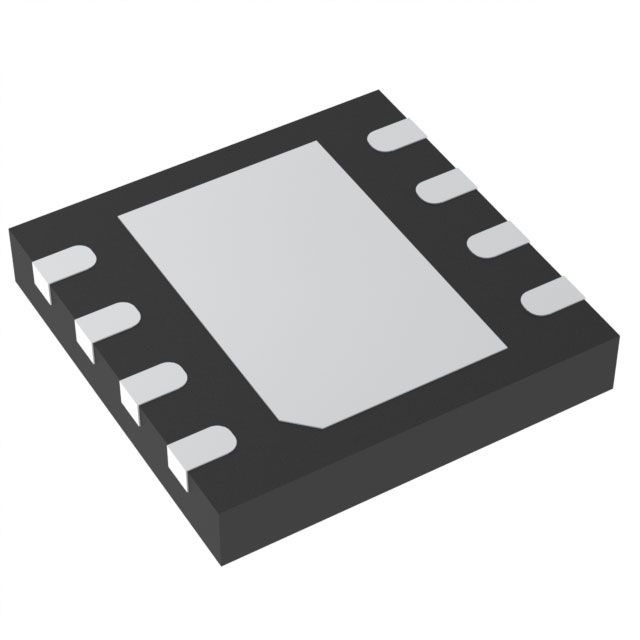

ADA4661-2ACPZ-RL

ADA4661-2ACPZ-RL Description

The ADA4661-2ACPZ-RL is a high-performance CMOS operational amplifier from Analog Devices Inc., designed to offer exceptional performance in a compact 8LFCSP package. This dual-channel amplifier features a wide supply voltage range from 3 V to 18 V, making it suitable for a variety of power supply configurations. With a gain bandwidth product of 4 MHz and a -3 dB bandwidth of 2.1 MHz, the ADA4661-2ACPZ-RL ensures high-frequency performance with minimal signal distortion. Its low input bias current of 0.5 pA and input offset voltage of 30 µV make it ideal for precision applications where signal integrity is paramount. The amplifier also boasts a slew rate of 2 V/µs, enabling it to handle fast-changing signals effectively. Each channel can source or sink up to 40 mA of current, providing robust output drive capabilities. The device is RoHS3 compliant and REACH unaffected, ensuring environmental sustainability and regulatory compliance.

ADA4661-2ACPZ-RL Features

• Wide Supply Voltage Range: Operates from 3 V to 18 V, offering flexibility in power supply design.
• High Gain Bandwidth Product: 4 MHz ensures high-frequency performance with minimal distortion.
• Low Input Bias Current: 0.5 pA, ideal for precision applications requiring low noise and high input impedance.
• Low Input Offset Voltage: 30 µV, ensuring accurate signal processing and minimal error.
• High Slew Rate: 2 V/µs, capable of handling fast signal transitions without distortion.
• Robust Output Drive: Each channel can source or sink up to 40 mA, suitable for driving various loads.
• Surface Mount Technology: 8LFCSP package, ideal for compact and high-density PCB designs.
• Environmental Compliance: RoHS3 compliant and REACH unaffected, ensuring regulatory compliance and sustainability.
• Dual Channel Design: Two independent amplifiers in a single package, reducing board space and component count.

ADA4661-2ACPZ-RL Applications

The ADA4661-2ACPZ-RL is well-suited for a variety of applications where precision, high performance, and compact design are critical. Its low input bias current and offset voltage make it ideal for precision signal conditioning in medical devices, such as electrocardiograms (ECGs) and blood glucose monitors. The wide supply voltage range and high slew rate make it suitable for industrial control systems, where robust performance and reliability are essential. Additionally, its dual-channel design and compact package size make it a preferred choice for consumer electronics, such as smartphones and tablets, where space is at a premium. The ADA4661-2ACPZ-RL is also well-suited for automotive applications, such as sensor signal processing and infotainment systems, where high performance and environmental compliance are required.

Conclusion of ADA4661-2ACPZ-RL

The ADA4661-2ACPZ-RL from Analog Devices Inc. stands out as a versatile and high-performance CMOS operational amplifier, offering a combination of precision, wide supply voltage range, and compact design. Its low input bias current and offset voltage ensure accurate signal processing, making it ideal for precision applications. The high slew rate and robust output drive capabilities further enhance its performance, making it suitable for a wide range of applications, from medical devices to industrial control systems. The dual-channel design and surface mount package reduce board space and component count, while environmental compliance ensures regulatory adherence. Overall, the ADA4661-2ACPZ-RL is a reliable and efficient solution for designers seeking high performance in a compact form factor.
