ADA4692-2ACPZ-RL

ADA4692-2ACPZ-RL Description

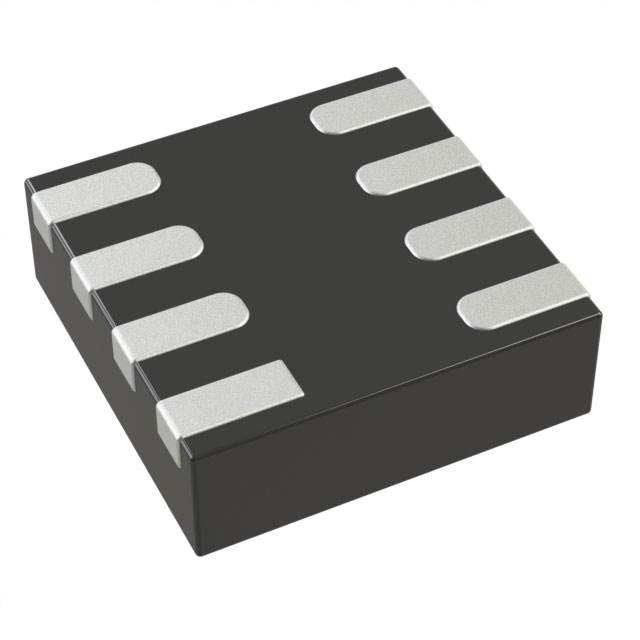

The ADA4692-2ACPZ-RL is a general-purpose operational amplifier (op-amp) from Analog Devices Inc., designed to deliver high performance in a compact 8LFCSP package. This dual-channel op-amp is optimized for low power consumption and high slew rate, making it suitable for a wide range of applications. The ADA4692-2ACPZ-RL operates over a wide supply voltage range from 2.7 V to 5 V, ensuring flexibility in various power supply environments. Each channel consumes only 180 µA, which is ideal for battery-powered or low-power systems. The op-amp features a high slew rate of 1.3 V/µs and a gain bandwidth product of 3.6 MHz, ensuring fast response times and stable performance in signal processing applications. With an input bias current of 0.5 pA and an input offset voltage of 500 µV, the ADA4692-2ACPZ-RL offers excellent precision and accuracy. Each channel can deliver an output current of 55 mA, providing robust performance for driving various loads. The device is available in a surface-mount package, making it suitable for automated assembly processes and compact designs.

ADA4692-2ACPZ-RL Features

• Wide Supply Voltage Range: Operates from 2.7 V to 5 V, providing flexibility in power supply requirements.
• Low Power Consumption: Each channel consumes only 180 µA, making it ideal for low-power applications.
• High Slew Rate: 1.3 V/µs ensures fast response times, suitable for high-frequency signal processing.
• Gain Bandwidth Product: 3.6 MHz provides stable performance across a wide frequency range.
• Precision Performance: Features an input bias current of 0.5 pA and an input offset voltage of 500 µV, ensuring high accuracy.
• High Output Current: Each channel can deliver up to 55 mA, capable of driving various loads.
• Surface-Mount Package: The 8LFCSP package is suitable for automated assembly and compact designs.
• Moisture Sensitivity Level (MSL): MSL 1 (Unlimited) ensures robustness in various environmental conditions.

ADA4692-2ACPZ-RL Applications

The ADA4692-2ACPZ-RL is well-suited for a variety of applications due to its high performance and low power consumption. Some specific use cases include:

• Signal Conditioning: Ideal for amplifying and conditioning signals in sensor interfaces, ensuring accurate and reliable data acquisition.
• Consumer Electronics: Suitable for portable devices where low power consumption and compact size are critical.
• Industrial Control Systems: Provides precise signal processing and control in various industrial applications.
• Medical Equipment: Ensures high accuracy and reliability in medical devices that require precise signal handling.
• Automotive Electronics: Suitable for automotive applications where robust performance and low power are essential.

Conclusion of ADA4692-2ACPZ-RL

The ADA4692-2ACPZ-RL is a versatile and high-performance operational amplifier from Analog Devices Inc., offering a combination of low power consumption, high slew rate, and precision performance. Its wide supply voltage range and compact surface-mount package make it suitable for a variety of applications, from consumer electronics to industrial control systems. While the product is now obsolete, it remains a reliable choice for designers seeking a general-purpose op-amp with excellent performance characteristics.
