Analog Devices Inc.

ADATE205BSVZ

ADATE205BSVZ Description

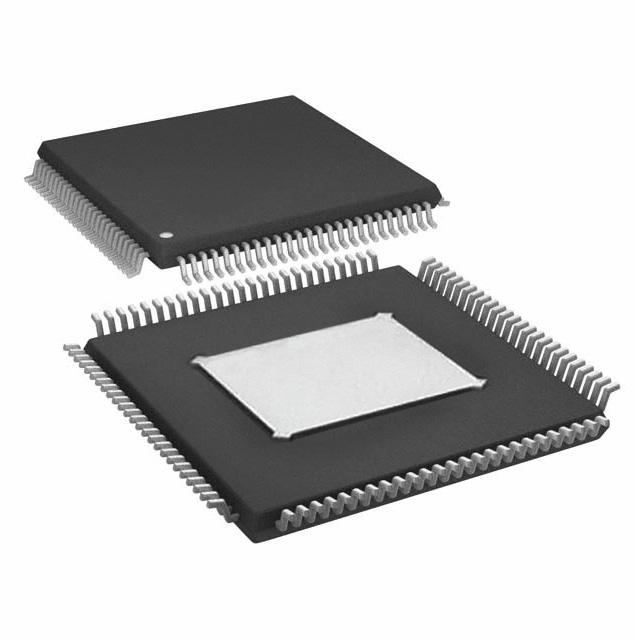

The ADATE205BSVZ is a high-performance, dual-channel digital-to-analog converter (DAC) designed for use in Automatic Test Equipment (ATE) applications. Manufactured by Analog Devices Inc., this IC is part of the Power Management (PMIC) category and is housed in a 100-pin TQFP package. The ADATE205BSVZ is known for its robust performance, offering a maximum supply current of 180mA and a frequency response up to 250MHz. Despite its obsolescence, the ADATE205BSVZ remains a reliable choice for applications requiring precision and high-speed signal processing.

ADATE205BSVZ Features

• High-Speed Performance: The ADATE205BSVZ boasts a frequency response of up to 250MHz, making it suitable for high-speed signal processing tasks.
• Dual-Channel DAC: This device features dual-channel digital-an-toalog conversion, allowing for simultaneous processing of two signals, which is particularly useful in complex ATE systems.
• Low Supply Current: With a supply current of only 180mA, the ADATE205BSVZ is energy-efficient, reducing power consumption and heat generation.
• Surface Mount Technology: The surface mount mounting type ensures ease of integration into modern printed circuit board (PCB) designs, facilitating compact and reliable system builds.
• Moisture Sensitivity Level (MSL): Rated at MSL 3 (168 Hours), the ADATE205BSVZ is designed to withstand environmental conditions, ensuring long-term reliability.
• Compliance and Packaging: The ADATE205BSVZ is classified under ECCN EAR99 and HTSUS 8542.39.0001, and it is packaged in trays, making it suitable for bulk handling and storage.

ADATE205BSVZ Applications

The ADATE205BSVZ is specifically designed for Automatic Test Equipment (ATE) applications, where precision and high-speed signal processing are critical. Its dual-channel DAC capability allows for simultaneous testing of multiple parameters, enhancing the efficiency and accuracy of ATE systems. The high-frequency response of 250MHz ensures that it can handle a wide range of signal frequencies, making it ideal for testing high-speed electronic components and systems. The low supply current of 180mA and surface mount technology further contribute to its suitability for compact and power-efficient ATE designs.

Conclusion of ADATE205BSVZ

The ADATE205BSVZ, manufactured by Analog Devices Inc., is a robust and high-performance dual-channel DAC designed for Automatic Test Equipment applications. Its high-frequency response, low supply current, and surface mount technology make it an ideal choice for modern ATE systems. Despite being marked as obsolete, the ADATE205BSVZ continues to offer reliable performance and is well-suited for applications requiring precision and high-speed signal processing. For engineers and designers looking for a reliable and efficient DAC solution, the ADATE205BSVZ remains a viable option.
