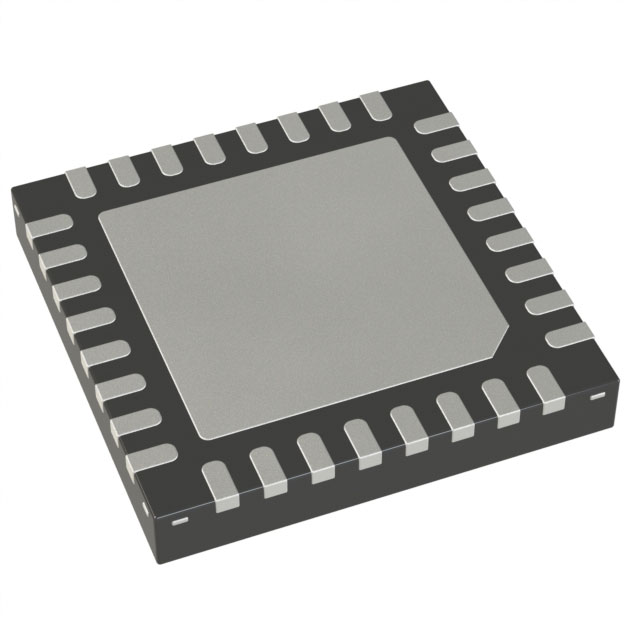

ADN2855ACPZ

ADN2855ACPZ Description

The ADN2855ACPZ is a high-performance clock and data recovery IC designed and manufactured by Analog Devices Inc., specifically tailored for applications in GPON (Gigabit Passive Optical Network), BPON (Broadband Passive Optical Network), and GEPON (Gigabit Ethernet Passive Optical Network). This Application Specific Clock/Timing IC is engineered to provide reliable and efficient performance in optical communication systems.

ADN2855ACPZ Features

• Main Purpose: Optimized for GPON, BPON, and GEPON applications, ensuring high-speed data transmission and synchronization.
• PLL (Phase-Locked Loop): Yes, providing stable clock signals for accurate data recovery.
• Input: CML (Current Mode Logic), supporting high-speed data interfaces.
• Output: LVDS (Low Voltage Differential Signaling), enabling low power consumption and high noise immunity.
• Voltage - Supply: Operates within a range of 3V to 3.6V, offering flexibility in power supply design.
• Frequency - Max: Capable of handling up to 200MHz, suitable for high-speed data communication.
• Ratio - Input:Output: 1:1, maintaining signal integrity without loss.
• Differential - Input:Output: Yes for both, ensuring robust signal transmission.
• Mounting Type: Surface Mount, facilitating integration into compact designs.
• Product Status: Active, indicating ongoing production and support.
• RoHS Status: ROHS3 Compliant, adhering to environmental standards.
• REACH Status: REACH Unaffected, ensuring compliance with European chemical regulations.
• ECCN: 5A991B3, for export control classification.
• HTSUS: 8542.39.0001, for harmonized tariff schedule.
• Moisture Sensitivity Level (MSL): 3 (168 Hours), indicating the level of moisture resistance.

ADN2855ACPZ Applications

The ADN2855ACPZ is ideal for various applications where high-speed data recovery and clock generation are critical:

1. Optical Communication Systems: Utilized in GPON, BPON, and GEPON networks for reliable data transmission.
2. Telecommunications Infrastructure: Enhances the performance of telecom equipment by providing stable clock signals.
3. Networking Equipment: Ensures accurate data synchronization in high-speed networking devices.
4. Data Centers: Supports the high data rates required for modern data center operations.

Conclusion of ADN2855ACPZ

The ADN2855ACPZ stands out due to its high-speed capabilities, robust design, and compliance with environmental and export regulations. Its unique features, such as CML input and LVDS output, make it a superior choice for applications demanding high data integrity and low power consumption. With a maximum frequency of 200MHz and a 1:1 input-output ratio, the ADN2855ACPZ is a reliable solution for advanced optical communication systems.
