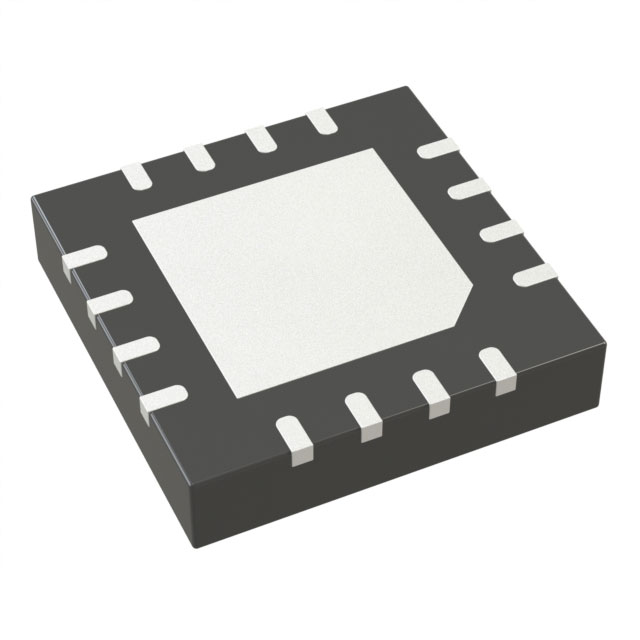

ADP2106ACPZ-R7

ADP2106ACPZ-R7 Description

The ADP2106ACPZ-R7 is a high-performance, adjustable DC switching voltage regulator designed and manufactured by Analog Devices Inc. This 1.5A output buck regulator operates with an input voltage range of 2.7V to 5.5V and provides an adjustable output voltage between 0.8V and 5.5V. It features a high switching frequency of 1.2MHz, which allows for smaller external components and improved efficiency. The device is RoHS3 compliant and REACH unaffected, ensuring environmental compliance.

ADP2106ACPZ-R7 Features

• Adjustable Output Voltage: Offers flexibility in voltage regulation, making it suitable for various applications.
• High Input Voltage Range: Operates efficiently over a wide range of input voltages, enhancing its versatility.
• 1.5A Output Current: Capable of delivering ample current for demanding applications.
• 1.2MHz Switching Frequency: Enables the use of smaller external components and improves overall efficiency.
• Synchronous Rectifier: Enhances efficiency and reduces power loss during the switching process.
• Surface Mount: Facilitates easy integration into surface-mount technology (SMT) manufacturing processes.
• Positive Output Configuration: Provides a straightforward connection for positive voltage applications.
• Single Output: Simplifies design and reduces complexity in systems requiring a single voltage rail.

ADP2106ACPZ-R7 Applications

The ADP2106ACPZ-R7 is ideal for applications requiring a stable and adjustable voltage supply, such as:

• Portable Electronics: Due to its low input voltage range, it is well-suited for battery-powered devices.
• Industrial Control Systems: The adjustable output allows for precise voltage regulation in various control systems.
• Telecommunications Equipment: Reliable power supply for communication devices with varying power requirements.
• Automotive Electronics: Capable of handling the voltage fluctuations common in automotive environments.

Conclusion of ADP2106ACPZ-R7

The ADP2106ACPZ-R7 stands out with its adjustable output voltage, high efficiency, and environmental compliance. Its unique features, such as the synchronous rectifier and high switching frequency, provide advantages over similar models in terms of performance and power management. This makes it an excellent choice for applications where precise voltage regulation and efficient power conversion are critical.
