ADP5071AREZ

ADP5071AREZ Description

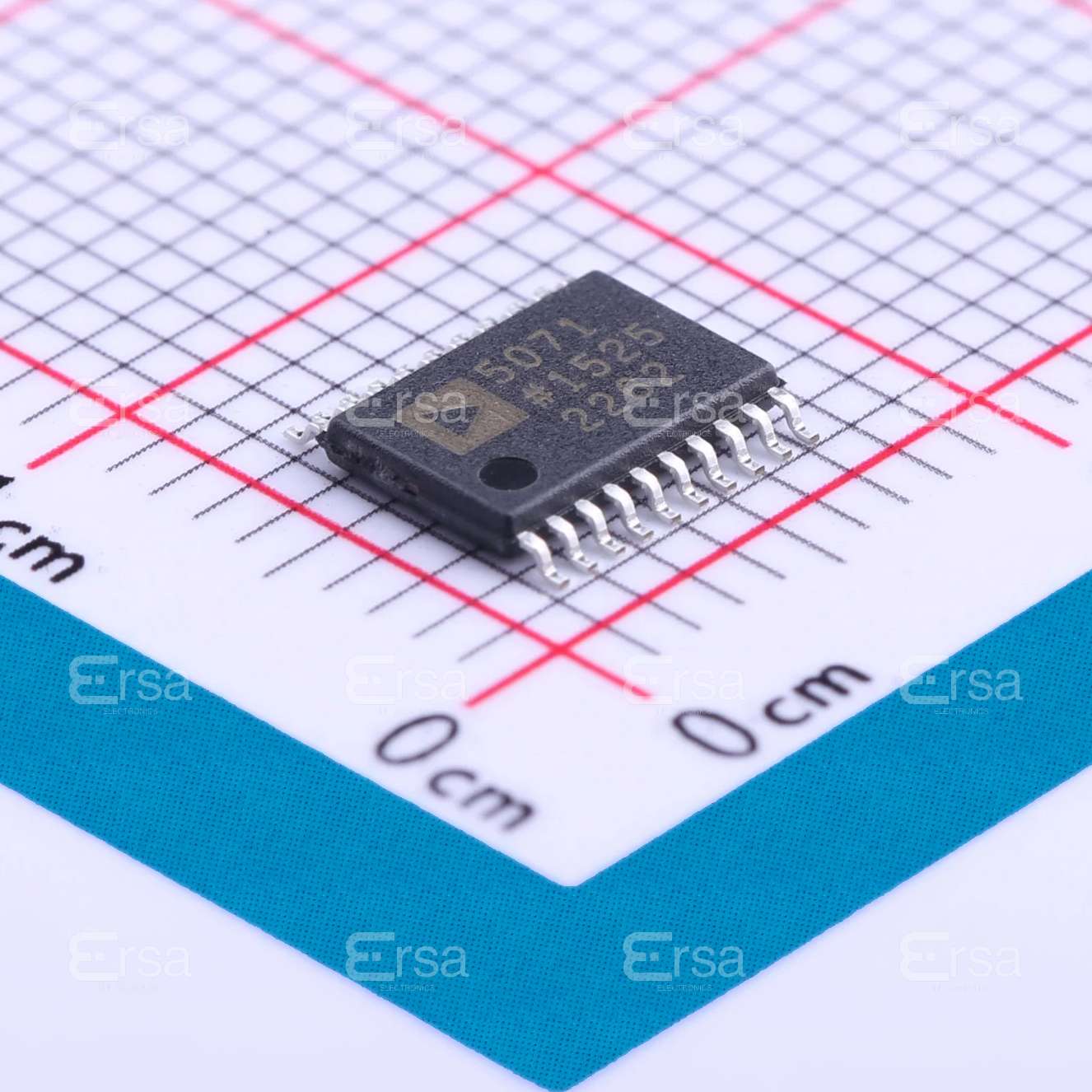

The ADP5071AREZ is a high-performance, dual-output, adjustable switching voltage regulator from Analog Devices Inc., designed for demanding DC power conversion applications. It features a SEPIC (Single-Ended Primary-Inductance Converter) topology with a boost converter for efficient power conversion and regulation. The device is available in a 20-lead TSSOP package and is suitable for surface-mount applications.

ADP5071AREZ Features

• Adjustable Output Voltage: The ADP5071AREZ offers adjustable output voltages ranging from 0.8V to ±39V, providing flexibility for various applications.
• Wide Input Voltage Range: The device can operate with input voltages between 2.85V and 15V, making it suitable for a wide range of power sources.
• Dual Output Configuration: The ADP5071AREZ features a positive and negative dual-rail output configuration, providing two independent output voltages.
• High Efficiency: The device achieves high efficiency with a switching frequency of 1.2MHz or 2.4MHz, depending on the application requirements.
• Robust Protection Features: The ADP5071AREZ includes over-voltage, over-current, and thermal shutdown protection to ensure reliable operation.
• Compliance with Regulations: The device is REACH unaffected and RoHS3 compliant, meeting environmental and safety standards.

ADP5071AREZ Applications

The ADP5071AREZ is ideal for a variety of applications where efficient and reliable power conversion is required. Some specific use cases include:

1. Industrial Control Systems: The ADP5071AREZ can provide stable and adjustable power for industrial control systems, ensuring reliable operation in demanding environments.
2. Telecommunications Equipment: The device can be used to power telecommunications equipment, providing stable power supply and meeting the high efficiency requirements of these applications.
3. Automotive Applications: The ADP5071AREZ can be used in automotive applications, such as infotainment systems and power management systems, where high efficiency and reliability are crucial.

Conclusion of ADP5071AREZ

The ADP5071AREZ from Analog Devices Inc. is a versatile and high-performance dual-output switching voltage regulator, offering adjustable output voltages, a wide input voltage range, and high efficiency. Its unique features, such as the SEPIC topology and dual-rail output configuration, make it an ideal choice for a variety of applications, including industrial control systems, telecommunications equipment, and automotive applications. With its compliance with environmental and safety regulations, the ADP5071AREZ is a reliable and efficient solution for demanding power conversion needs.
