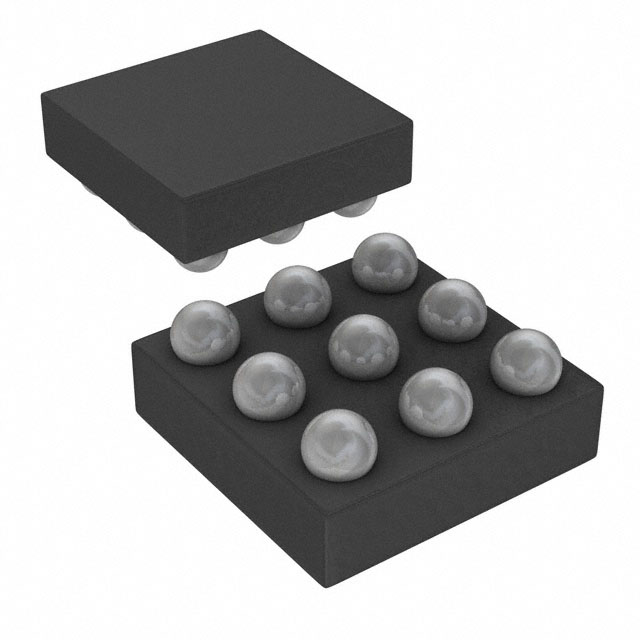

ADP5301ACBZ-1-R7

ADP5301ACBZ-1-R7 Description

The ADP5301ACBZ-1-R7 is a high-performance, programmable DC switching voltage regulator designed for a wide range of applications. Manufactured by Analog Devices Inc., this device belongs to the category of DC Switching Voltage Regulators and is currently in active production. With its unique features and advantages, the ADP5301ACBZ-1-R7 stands out among similar models in the market.

ADP5301ACBZ-1-R7 Features

• Output Type: Programmable, allowing for flexible output voltage settings.
• Voltage - Input (Min/Max): 2.15V to 6.5V, providing a wide input voltage range.
• Current - Output: 50mA and 500mA, catering to different power requirements.
• Output Configuration: Positive, ensuring compatibility with various applications.
• Frequency - Switching: 2MHz, enabling high-speed operation.
• Synchronous Rectifier: Yes, improving efficiency and reducing power loss.
• Topology: Buck, suitable for step-down voltage conversion.
• Mounting Type: Surface Mount, facilitating easy integration into PCB designs.
• Voltage - Output (Min/Max): 0.8V to 5V, offering a wide output voltage range.
• Number of Outputs: 1, providing a single output for simplicity.
• RoHS Status: ROHS3 Compliant, ensuring environmental friendliness.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating minimal sensitivity to moisture.
• REACH Status: REACH Unaffected, adhering to European chemical regulations.
• ECCN: EAR99, complying with export control classification numbers.
• Package: Tape & Reel (TR)

ADP5301ACBZ-1-R7 Applications

The ADP5301ACBZ-1-R7 is ideal for various applications where efficient and programmable voltage regulation is required. Some specific use cases include:

1. Portable Electronics: Due to its small form factor and low power consumption, it is suitable for powering portable devices such as smartphones, tablets, and wearables.
2. Industrial Automation: Its wide input voltage range and high efficiency make it suitable for industrial automation systems where reliability and performance are critical.
3. Telecommunications: The device can be used in telecommunications equipment to provide stable and regulated power supply.
4. Medical Devices: Its programmability and low output voltage make it ideal for powering sensitive medical equipment.

Conclusion of ADP5301ACBZ-1-R7

In conclusion, the ADP5301ACBZ-1-R7 is a versatile and high-performance DC switching voltage regulator that offers a wide range of features and benefits. Its programmability, efficiency, and compliance with environmental regulations make it an excellent choice for a variety of applications in the electronics industry. With its unique advantages over similar models, the ADP5301ACBZ-1-R7 is poised to deliver reliable and efficient power solutions in today's demanding electronic systems.
