Analog Devices Inc.

ADRF5025BCCZN

RF Switches

ADRF5025BCCZN Description

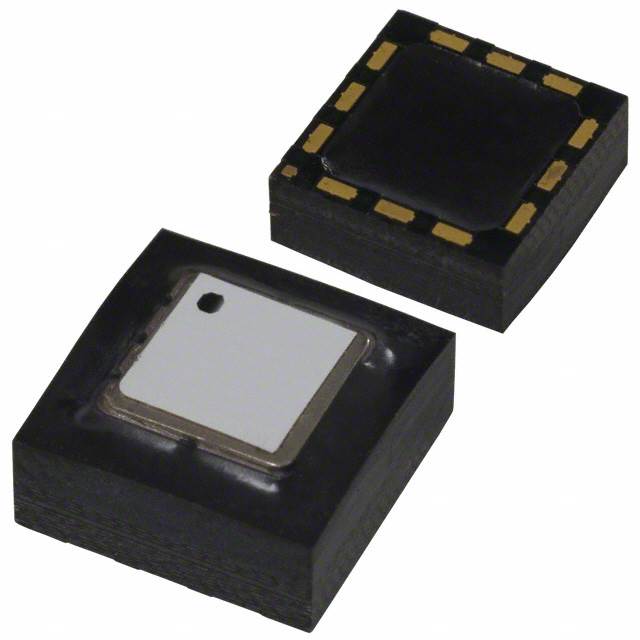

The ADRF5025BCCZN from Analog Devices Inc. is a high-performance SPDT (Single Pole Double Throw) RF switch designed for general-purpose applications across an ultra-wide frequency range of 9 kHz to 44 GHz. This surface-mount device operates with a low supply voltage of 3.15V to 3.45V, making it suitable for low-power systems. It features exceptional linearity with an IP3 of 50dBm and a P1dB of 27.5dBm, ensuring minimal distortion in high-power scenarios. The switch boasts low insertion loss (1.6dB) and high isolation (35dB), critical for maintaining signal integrity in RF paths. Packaged in a 12-pin LGA (Land Grid Array), it is RoHS3 compliant and rated for MSL 3 (168 hours), ensuring reliability in demanding environments.

ADRF5025BCCZN Features

• Ultra-wideband operation: Covers DC to 44 GHz, ideal for mmWave and 5G applications.
• High power handling: 27.5dBm P1dB and 50dBm IIP3 for robust performance in high-signal environments.
• Low insertion loss: 1.6dB at 44 GHz minimizes signal degradation.
• High isolation: 35dB ensures minimal crosstalk between channels.
• Compact and reliable: 12LGA package with MSL 3 rating for surface-mount assembly.
• Reflective topology: Enhances switching speed and reduces power consumption.
• Compliant with industry standards: RoHS3, REACH unaffected, and ECCN EAR99.

ADRF5025BCCZN Applications

• 5G and mmWave systems: Ideal for beamforming, phased arrays, and RF front-end switching due to its 44 GHz capability.
• Test and measurement equipment: Suitable for signal routing in VNAs, spectrum analyzers, and ATE systems.
• Satellite and defense systems: High linearity and isolation make it perfect for radar, EW (Electronic Warfare), and SATCOM.
• Wireless infrastructure: Used in base stations, repeaters, and backhaul links for efficient signal management.

Conclusion of ADRF5025BCCZN

The ADRF5025BCCZN stands out as a high-performance RF switch with ultra-wideband coverage, superior linearity, and low loss, making it a top choice for 5G, mmWave, and defense applications. Its compact form factor, compliance with environmental standards, and robust power handling position it as a versatile solution for advanced RF systems. Engineers seeking reliable, high-frequency switching with minimal signal degradation will find this device exceptionally well-suited for their designs.

ADRF5025BCCZN Documents

Download datasheets and manufacturer documentation for ADRF5025BCCZN

Datasheets :

ADRF5025

PCN Design/Specification :

ADRF5024/25 Datasheet Chg 5/Jun/2018       ADRF5025BCCZN 03/Oct/2022
