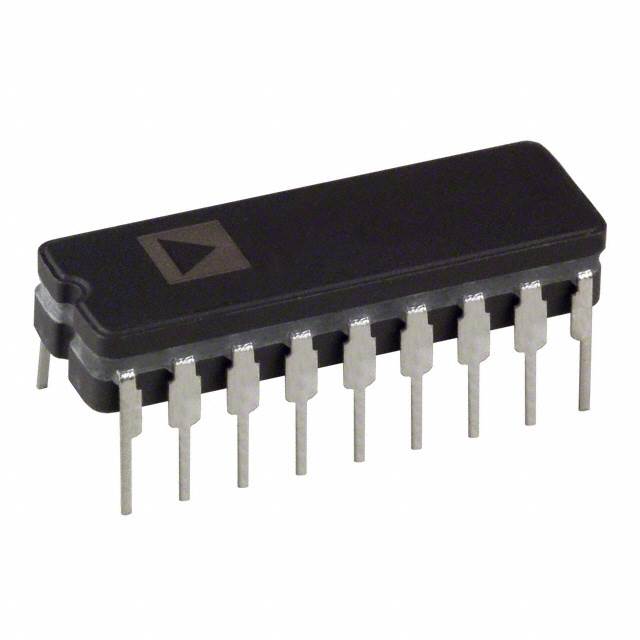

AMP01BX

AMP01BX Description

The AMP01BX is a high-performance instrumentation amplifier designed by Analog Devices Inc., a leading manufacturer in the field of linear IC chips. This device is tailored for precision signal conditioning and amplification, making it ideal for a wide range of industrial and scientific applications. The AMP01BX features a robust set of specifications that ensure reliable performance in demanding environments.

AMP01BX Features

• Amplifier Type: The AMP01BX is an instrumentation amplifier, which is specifically designed to provide high gain accuracy and excellent common-mode rejection. This makes it suitable for applications where precise measurement and amplification of differential signals are required.
• Supply Voltage Range: With a supply voltage span ranging from 9 V to 36 V, the AMP01BX offers flexibility in power supply options, making it compatible with various power sources.
• Low Input Bias Current: The AMP01BX has an extremely low input bias current of 2 nA, which minimizes the impact on the input signal source, ensuring high accuracy and stability in signal processing.
• High Bandwidth and Slew Rate: The -3 dB bandwidth of 570 kHz and a slew rate of 4.5 V/µs enable the AMP01BX to handle high-frequency signals with minimal distortion, making it suitable for applications requiring fast signal processing.
• Low Input Offset Voltage: The voltage input offset of 40 µV ensures minimal error in the amplified signal, contributing to the overall precision of the device.
• Compliance and Packaging: The AMP01BX is REACH unaffected and RoHS3 compliant, ensuring environmental sustainability and regulatory compliance. It is packaged in a tube and has a moisture sensitivity level (MSL) of 1, making it suitable for long-term storage and through-hole mounting.
• Output Current Capability: The device can deliver up to 120 mA per channel, providing ample current for driving various loads without compromising performance.

AMP01BX Applications

The AMP01BX is well-suited for a variety of applications due to its high precision and robust performance. Some specific use cases include:

• Industrial Process Control: The AMP01BX can be used to amplify and condition signals from sensors in industrial environments, ensuring accurate and reliable process control.
• Medical Equipment: In medical devices, the AMP01BX can amplify weak bioelectrical signals with high precision, contributing to accurate diagnostics and monitoring.
• Scientific Instruments: The device is ideal for scientific instruments that require high-precision signal amplification, such as in spectroscopy and analytical equipment.
• Signal Conditioning: The AMP01BX can be used in signal conditioning circuits to amplify and process signals from various sensors, improving signal quality and reliability.

Conclusion of AMP01BX

The AMP01BX from Analog Devices Inc. stands out as a versatile and high-performance instrumentation amplifier. Its wide supply voltage range, low input bias current, and high bandwidth make it a reliable choice for precision signal amplification. The device's compliance with environmental and regulatory standards, along with its robust packaging, ensures long-term reliability and ease of integration. Whether used in industrial automation, medical devices, or scientific instruments, the AMP01BX delivers exceptional performance and precision, making it a valuable component in any demanding application.
