DAC312HP

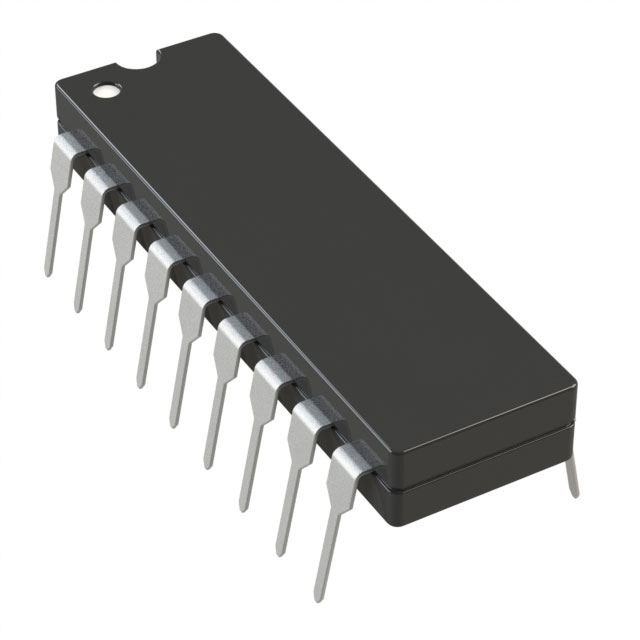

DAC312HP Description

The DAC312HP from Analog Devices Inc. is a high-performance 12-bit digital-to-analog converter (DAC) designed for precision analog output applications. Housed in a 20-pin DIP (Dual Inline Package), this through-hole-mount DAC offers a single-channel output with differential capability, ensuring superior noise rejection and signal integrity. Operating with a digital supply voltage range of 20V to 36V, it supports parallel data interface for fast data transfer, making it suitable for high-speed control systems. The DAC312HP features a rapid 500ns settling time, enabling quick response in dynamic applications. Although marked as obsolete, its robust design and external reference flexibility make it a reliable choice for legacy systems requiring stable, high-resolution analog outputs.

DAC312HP Features

• 12-bit resolution for precise analog signal generation.
• Differential output reduces common-mode noise, enhancing accuracy.
• Fast settling time (500ns) ensures rapid response in real-time systems.
• Wide digital supply range (20V–36V) accommodates varied industrial power requirements.
• Parallel data interface simplifies integration with microprocessors and FPGAs.
• External reference input allows customization for specific voltage ranges.
• Through-hole mounting (20DIP) ensures durability in harsh environments.
• Obsolete status may limit availability but remains viable for long-lifecycle designs.

DAC312HP Applications

The DAC312HP excels in applications demanding high-speed, high-precision analog conversion, including:

• Industrial automation: Control systems for PLCs, motor drives, and process instrumentation.
• Test and measurement equipment: Signal generators, data acquisition systems, and calibration devices.
• Military/aerospace: Legacy avionics and radar systems requiring rugged, reliable DACs.
• Medical instrumentation: Precision analog output stages in diagnostic and therapeutic devices.
• Audio processing: High-fidelity digital audio reconstruction where differential outputs minimize interference.

Conclusion of DAC312HP

The DAC312HP stands out for its 12-bit accuracy, differential output, and fast settling time, making it ideal for noise-sensitive, high-speed applications. While obsolete, its industrial-grade robustness and flexible reference design ensure continued relevance in legacy and long-lifecycle systems. Engineers seeking a reliable, high-voltage DAC for precision control or signal generation will find the DAC312HP a compelling solution, despite its discontinued status.
