HMC1031MS8E

HMC1031MS8E Description

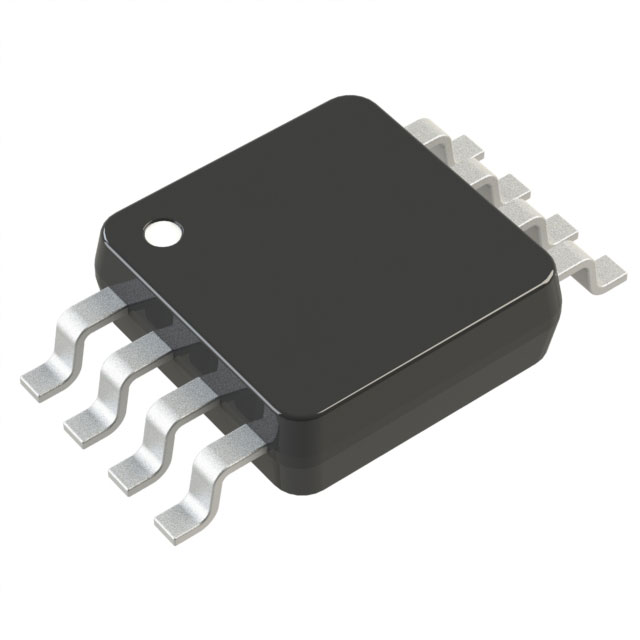

The HMC1031MS8E from Analog Devices Inc. is a high-performance clock generator IC featuring an integrated integer-N PLL (Phase-Locked Loop). Designed for precision timing applications, it operates within a 2.7V to 3.5V supply range and supports frequencies up to 500MHz. This surface-mount device is housed in an 8-MS8E package and is RoHS3 compliant, ensuring environmental and regulatory adherence. Although marked as obsolete, it remains a reliable choice for legacy systems requiring stable clock generation with low jitter and high-frequency accuracy.

HMC1031MS8E Features

• Integrated PLL: Enables precise clock synthesis and synchronization.
• Wide Frequency Range: Supports up to 500MHz, suitable for high-speed applications.
• Low Voltage Operation: 2.7V–3.5V supply range ideal for portable and low-power systems.
• 1:1 Input/Output Ratio: Simplifies clock distribution without additional scaling.
• Surface-Mount Design (MS8E): Compact footprint for space-constrained PCB layouts.
• Divider Capability (No Multiplier): Flexible frequency division for system clock requirements.
• Moisture Sensitivity Level (MSL) 1: Robust for extended storage and handling.

HMC1031MS8E Applications

• Telecommunications: Clock generation for base stations and network equipment.
• Test & Measurement: Precision timing in oscilloscopes and signal analyzers.
• Data Acquisition Systems: Synchronization of high-speed ADCs and DACs.
• Industrial Automation: Timing control for PLCs and motion controllers.
• Legacy Electronics: Replacement or maintenance of older systems requiring stable clock sources.

Conclusion of HMC1031MS8E

The HMC1031MS8E excels in delivering high-frequency clock generation with low jitter and PLL-based synchronization, making it a versatile solution for demanding timing applications. While obsolete, its robust performance, compact form factor, and compliance with RoHS3 standards ensure continued relevance in legacy and specialized systems. Engineers seeking a reliable clock generator for telecom, industrial, or test equipment will find this IC a proven choice.
