Analog Devices Inc.

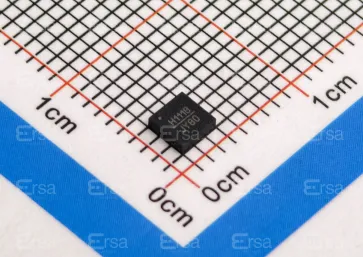

HMC1118LP3DE

RF Switches

HMC1118LP3DE Description

The HMC1118LP3DE is a high-performance RF switch designed and manufactured by Analog Devices Inc., a leading name in the electronics industry. This switch is part of the RF Switches category and is specifically designed for VSAT applications. With a frequency range of 9kHz to 13GHz, the HMC1118LP3DE is capable of handling a wide range of frequencies, making it suitable for various applications. It is currently an active product, compliant with ROHS3 standards, and unaffected by REACH regulations.

HMC1118LP3DE Features

• Frequency Range: The HMC1118LP3DE boasts a wide frequency range of 9kHz to 13GHz, allowing it to be used in a variety of applications.
• Voltage - Supply: It operates on a supply voltage of 3V to 3.6V, making it suitable for low-power applications.
• RoHS Status: The HMC1118LP3DE is compliant with ROHS3 standards, ensuring environmental compliance.
• REACH Status: This product is unaffected by REACH regulations, ensuring regulatory compliance.
• Insertion Loss: The HMC1118LP3DE has an insertion loss of 2dB, ensuring minimal signal degradation.
• Isolation: It provides 50dB of isolation, ensuring clear and distinct signal paths.
• IIP3: The HMC1118LP3DE has an IIP3 of 62dBm, ensuring high linearity and minimizing intermodulation distortion.
• P1dB: It can handle a power of 37dBm, making it suitable for high-power applications.
• Circuit: The HMC1118LP3DE is a single-pole double-throw (SPDT) switch, providing flexibility in signal routing.
• Topology: It uses an absorptive topology, ensuring low insertion loss and high isolation.
• Mounting Type: The HMC1118LP3DE is surface mount, allowing for easy integration into various systems.
• Impedance: It has an impedance of 50Ohm, ensuring compatibility with standard RF systems.

HMC1118LP3DE Applications

The HMC1118LP3DE is ideal for use in VSAT applications due to its wide frequency range and high performance. It can also be used in other RF applications where high linearity, low insertion loss, and high isolation are required. Some specific use cases include:

• Communication Systems: The HMC1118LP3DE can be used in communication systems where signal routing and switching are required.
• Test and Measurement Equipment: It can be used in test and measurement equipment where high performance and reliability are crucial.
• Military and Aerospace Applications: The HMC1118LP3DE can be used in military and aerospace applications where high reliability and performance are required.

Conclusion of HMC1118LP3DE

The HMC1118LP3DE is a high-performance RF switch that offers a wide frequency range, low insertion loss, and high isolation. Its compliance with ROHS3 and REACH regulations ensures environmental and regulatory compliance. With its absorptive topology and SPDT circuit, the HMC1118LP3DE provides flexibility and performance in various applications. Its unique features and advantages make it an ideal choice for VSAT applications and other high-performance RF applications.

HMC1118LP3DE Documents

Download datasheets and manufacturer documentation for HMC1118LP3DE

PCN Assembly/Origin :

ADRF5x/HMCx 19/Apr/2022

Datasheets :

HMC1118

HTML Datasheet :

HMC1118
