HMC637A

HMC637A Description

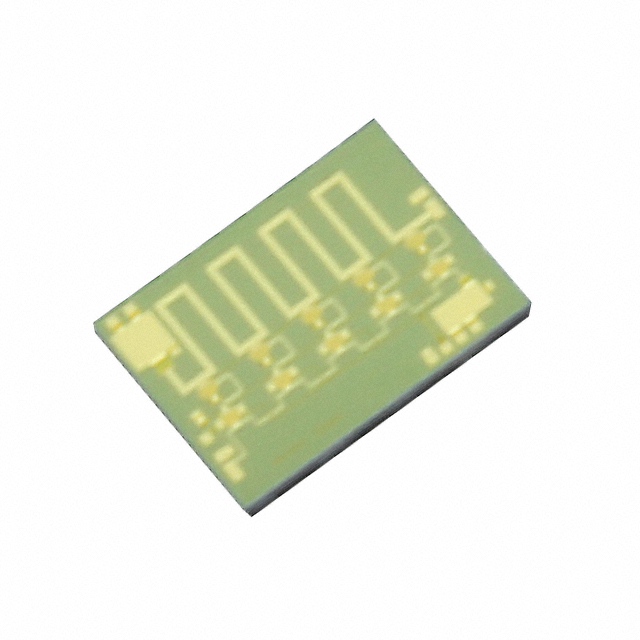

The HMC637A from Analog Devices Inc. is a high-performance surface-mount RF amplifier designed for VSAT (Very Small Aperture Terminal) and broadband applications. Operating across a 0Hz to 6GHz frequency range, this amplifier delivers 13dB gain with a 29dBm output power at 1dB compression (P1dB), making it ideal for high-linearity systems. The device is supplied in die form, ensuring flexibility for integration into custom RF modules. With a 5V supply voltage and 400mA current consumption, it balances power efficiency with robust performance. The 12dB noise figure ensures minimal signal degradation, while its RoHS3 compliance and REACH unaffected status make it suitable for environmentally conscious designs.

HMC637A Features

• Frequency Range: 0Hz to 6GHz, covering L, S, C, and lower X bands.
• High Linearity: 29dBm P1dB for distortion-sensitive applications.
• Low Noise Figure: 12dB, enhancing signal integrity in receive chains.
• Compact Die Form: Enables custom integration in advanced RF systems.
• Wide Supply Range: 5V operation with 400mA current draw.
• Robust Compliance: RoHS3, REACH unaffected, and EAR99 (export-friendly).
• Unlimited MSL (Moisture Sensitivity Level): Simplifies handling and storage.

HMC637A Applications

The HMC637A excels in VSAT communications, military radar, test equipment, and broadband infrastructure due to its wide bandwidth and high linearity. Key use cases include:

• Satellite Transceivers: Leveraging its 6GHz bandwidth for uplink/downlink paths.
• Defense Systems: Radar and EW (Electronic Warfare) applications requiring stable gain.
• 5G/Wireless Backhaul: Supporting high-power, low-noise signal conditioning.
• Lab Instrumentation: Signal generators and spectrum analyzers benefiting from its flat gain response.

Conclusion of HMC637A

The HMC637A stands out as a versatile, high-performance RF amplifier, combining broadband operation, high linearity, and compact packaging. Its die format allows for seamless integration into bespoke designs, while its compliance and reliability make it a preferred choice for demanding RF applications. Whether in satellite, defense, or wireless infrastructure, this amplifier delivers consistent performance, making it a critical component in modern RF systems.
