HMC797A

HMC797A Description

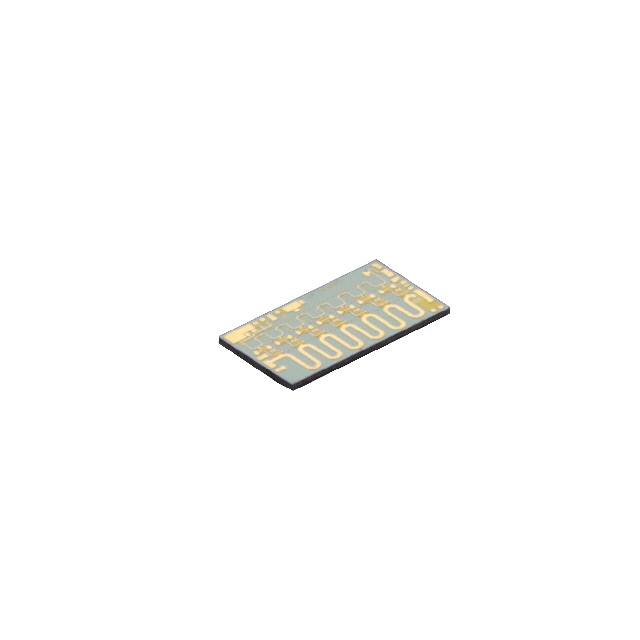

The HMC797A from Analog Devices Inc. is a high-performance die-form RF amplifier designed for VSAT (Very Small Aperture Terminal) and broadband applications. Operating across a 0Hz to 22GHz frequency range, this amplifier delivers 15.5dB gain with an outstanding P1dB output power of 28.5dBm, ensuring robust signal integrity in demanding RF environments. Its low noise figure of 3.5dB enhances sensitivity, making it ideal for high-frequency systems. The device is supplied in a die package, requiring surface-mount assembly, and supports a 10V supply voltage with a 400mA current draw. Compliant with ROHS3 and REACH Unaffected standards, it is suitable for environmentally conscious designs.

HMC797A Features

• Broadband Performance: Covers DC to 22GHz, eliminating the need for multiple amplifiers in wideband systems.
• High Linearity: 28.5dBm P1dB ensures minimal distortion in high-power applications.
• Low Noise: 3.5dB noise figure optimizes signal-to-noise ratio for sensitive receivers.
• Compact Die Form: Enables integration into custom RF modules or MMIC designs.
• Robust Supply Compatibility: Operates at 10V/400mA, balancing power efficiency and performance.
• Environmental Compliance: ROHS3 and REACH Unaffected certifications meet global regulatory requirements.

HMC797A Applications

• VSAT Systems: Enhances uplink/downlink signal strength in satellite communication.
• Military & Aerospace: Reliable performance in radar, EW (Electronic Warfare), and avionics.
• Test & Measurement: Ideal for broadband signal generation and analysis up to 22GHz.
• 5G Infrastructure: Supports mmWave and backhaul solutions with high linearity.
• Point-to-Point Radio: Ensures long-range connectivity with low noise and high gain.

Conclusion of HMC797A

The HMC797A stands out as a versatile, high-performance RF amplifier for wideband and VSAT applications. Its exceptional gain, linearity, and low noise make it a superior choice over narrower-band alternatives. The die form factor allows for flexible integration, while its compliance with environmental standards ensures global usability. Whether in satellite communications, defense systems, or 5G networks, the HMC797A delivers reliable, high-frequency amplification with minimal compromise.
