LT1076IT#06PBF

LT1076IT#06PBF Description

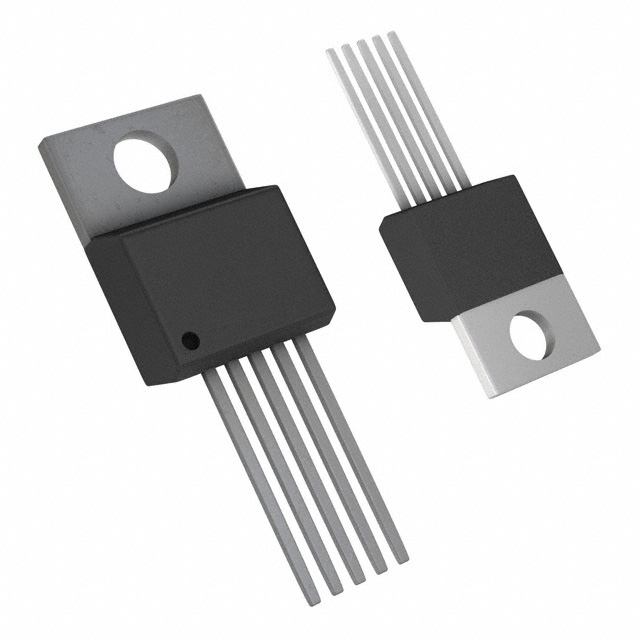

The LT1076IT#06PBF is a versatile and high-performance DC switching voltage regulator designed by Analog Devices Inc. This regulator is known for its wide input voltage range, adjustable output voltage, and robust performance characteristics. The LT1076IT#06PBF supports multiple topologies including buck, boost, and flyback, making it suitable for a variety of power conversion applications. It features an adjustable output voltage ranging from 2.5V to 35V, with a maximum input voltage of 45V and a minimum input voltage of 8V. The regulator is capable of delivering up to 2A of output current through its switch, ensuring reliable power delivery even under demanding conditions. The device operates at a switching frequency of 100kHz, which helps in minimizing the size of external components while maintaining high efficiency. The LT1076IT#06PBF is housed in a through-hole TO220 package, which is ideal for applications requiring high power dissipation and easy integration into printed circuit boards.

LT1076IT#06PBF Features

• Wide Input Voltage Range: The LT1076IT#06PBF operates from a wide input voltage range of 8V to 45V, making it suitable for applications with varying input supply voltages.
• Adjustable Output Voltage: The output voltage can be adjusted from 2.5V to 35V, providing flexibility to meet specific application requirements.
• High Output Current Capability: With a maximum output current of 2A through its switch, the LT1076IT#06PBF can handle high load demands efficiently.
• Multiple Topologies: The regulator supports buck, boost, and flyback topologies, offering versatility in power conversion designs.
• 100kHz Switching Frequency: The 100kHz switching frequency allows for the use of smaller inductors and capacitors, reducing the overall size and cost of the power supply.
• Positive or Negative Output Configuration: The LT1076IT#06PBF can be configured for either positive or negative output voltages, enhancing its application scope.
• Compliance and Reliability: The device is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and regulatory standards. It also has a moisture sensitivity level (MSL) of 1, making it suitable for unlimited storage conditions.
• Through-Hole Mounting: The TO220 package with through-hole mounting ensures robust mechanical stability and high power dissipation capability.

LT1076IT#06PBF Applications

The LT1076IT#06PBF is ideal for a range of applications due to its flexibility and high performance. Some specific use cases include:

• Industrial Power Supplies: The wide input voltage range and high output current capability make it suitable for industrial applications where reliable power delivery is crucial.
• Telecommunications Equipment: The adjustable output voltage and multiple topologies support various power requirements in telecom infrastructure.
• Automotive Electronics: The robustness and wide operating voltage range make it suitable for automotive applications where voltage fluctuations are common.
• Medical Devices: The compliance with environmental and regulatory standards ensures it can be used in medical equipment where reliability and safety are paramount.
• Consumer Electronics: The compact size and versatility make it a good fit for consumer electronics requiring efficient power conversion.

Conclusion of LT1076IT#06PBF

The LT1076IT#06PBF from Analog Devices Inc. stands out as a highly versatile and reliable DC switching voltage regulator. Its wide input voltage range, adjustable output voltage, and support for multiple topologies make it suitable for a variety of applications. The device's high output current capability, combined with its 100kHz switching frequency, ensures efficient power delivery and compact design. The through-hole TO220 package provides robust mechanical stability and high power dissipation, making it ideal for demanding applications. With its compliance to environmental and regulatory standards, the LT1076IT#06PBF is a reliable choice for engineers looking to design efficient and reliable power conversion solutions.
