LT1079CN

LT1079CN Description

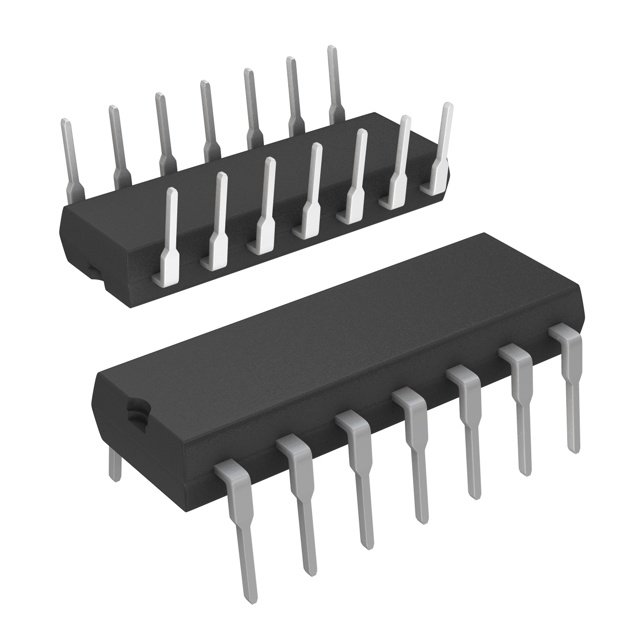

The LT1079CN is a general-purpose operational amplifier (op-amp) from Analog Devices Inc., designed for a variety of applications in the electronics industry. This 4-circuit op-amp is housed in a 14-DIP tube package, making it suitable for through-hole mounting. Despite being classified as obsolete, the LT1079CN remains a popular choice for its reliable performance and versatility in various applications.

LT1079CN Features

• Voltage - Supply Span: The LT1079CN can operate with a supply voltage ranging from 2.2 V to 30 V, providing flexibility in power supply requirements.
• Operating Temperature: This op-amp is designed to function effectively within a temperature range of 0°C to 70°C, making it suitable for a wide range of environments.
• Slew Rate: With a slew rate of 0.1V/µs, the LT1079CN offers a balance between speed and stability in signal processing.
• Gain Bandwidth Product: The gain bandwidth product of 200 kHz ensures that the LT1079CN can handle a variety of signal frequencies effectively.
• Current - Supply: The LT1079CN consumes a low supply current of 38µA across its four channels, making it energy-efficient.
• Current - Input Bias: The low input bias current of 6 nA contributes to the op-amp's high input impedance and overall performance.
• Voltage - Input Offset: The LT1079CN boasts a low input offset voltage of 80 µV, which is crucial for maintaining signal integrity in precision applications.
• Moisture Sensitivity Level (MSL): Rated at MSL 1, the LT1079CN can be stored for an unlimited period without the need for special precautions against moisture.

LT1079CN Applications

The LT1079CN's combination of low power consumption, wide supply voltage range, and low input bias current make it an ideal choice for various applications, including:

• Audio Amplification: Due to its low noise and distortion characteristics, the LT1079CN is well-suited for audio signal amplification.
• Sensor Signal Conditioning: Its low input bias current and offset voltage make it suitable for conditioning signals from sensors in industrial and scientific applications.
• Data Acquisition Systems: The LT1079CN can be used in data acquisition systems where low power consumption and reliable signal processing are critical.
• Instrumentation Amplifiers: The LT1079CN's low offset voltage and high input impedance are beneficial in the design of instrumentation amplifiers for precise measurements.

Conclusion of LT1079CN

While the LT1079CN is now considered obsolete, its robust performance and versatile features continue to make it a popular choice for a variety of applications in the electronics industry. Its low power consumption, wide operating temperature range, and reliable performance in signal processing make it an ideal solution for designers looking for a general-purpose op-amp that can handle a broad spectrum of tasks. Despite its age, the LT1079CN remains a reliable component for applications where precision and stability are paramount.
