LT1970CFE#PBF

LT1970CFE#PBF Description

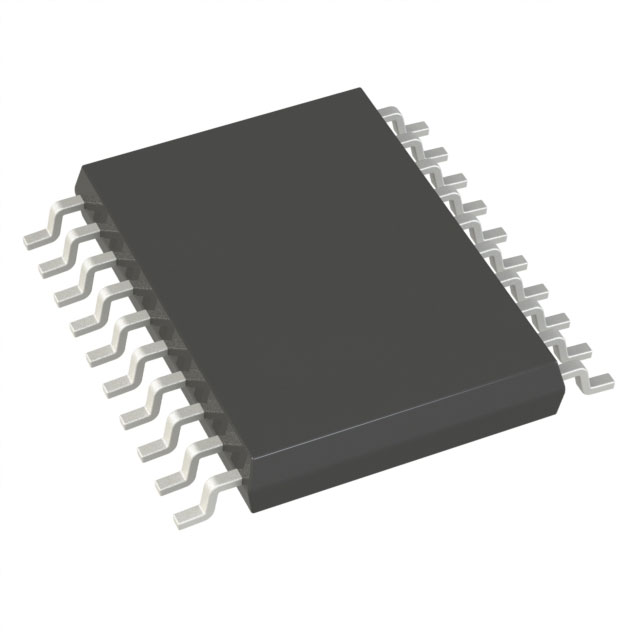

The LT1970CFE#PBF is a high-performance general-purpose operational amplifier designed by Analog Devices Inc., a leading manufacturer in the electronics industry. This IC is housed in a 20-TSSOP package and is ideal for a wide range of applications due to its robust performance and versatile specifications. The LT1970CFE#PBF operates within a supply voltage range of 5V to 36V, making it suitable for both low-voltage and high-voltage applications. It features a gain bandwidth product of 3.6 MHz and a slew rate of 1.6V/µs, ensuring high-speed performance and excellent signal integrity. With a supply current of just 7mA, this op-amp is highly efficient and suitable for power-sensitive designs.

LT1970CFE#PBF Features

• Wide Supply Voltage Range: The LT1970CFE#PBF supports a supply voltage range from 5V to 36V, providing flexibility for various power supply configurations.
• High Gain Bandwidth Product: With a gain bandwidth product of 3.6 MHz, this op-amp can handle high-frequency signals with minimal distortion, making it ideal for applications requiring high-speed signal processing.
• Fast Slew Rate: The 1.6V/µs slew rate ensures that the amplifier can quickly respond to changes in input signals, reducing settling time and improving overall system performance.
• Low Input Bias Current: The low input bias current of 160 nA minimizes the impact on the input signal source, making it suitable for high-impedance applications.
• Low Input Offset Voltage: The 200 µV input offset voltage ensures high accuracy and stability in signal amplification.
• Surface Mount Technology: The surface mount package type allows for easy integration into compact and high-density PCB designs.
• Compliance and Reliability: The LT1970CFE#PBF is REACH unaffected and RoHS3 compliant, ensuring environmental safety and regulatory compliance. It also has a moisture sensitivity level (MSL) of 1, making it suitable for a wide range of manufacturing environments.

LT1970CFE#PBF Applications

The LT1970CFE#PBF is well-suited for a variety of applications due to its versatile specifications and high performance. Some specific use cases include:

• Signal Conditioning: Ideal for amplifying and conditioning weak signals from sensors, ensuring high accuracy and minimal distortion.
• High-Speed Signal Processing: Suitable for applications requiring fast response times and high-frequency signal handling, such as in communication systems and data acquisition.
• Power Management: The low supply current and wide voltage range make it suitable for power management circuits where efficiency and flexibility are critical.
• Industrial Control Systems: The robust performance and wide operating temperature range (0°C to 70°C) make it ideal for industrial control systems that require high reliability and stability.

Conclusion of LT1970CFE#PBF

The LT1970CFE#PBF from Analog Devices Inc. stands out as a versatile and high-performance general-purpose operational amplifier. Its wide supply voltage range, high gain bandwidth product, and fast slew rate make it suitable for a broad spectrum of applications, from signal conditioning to high-speed signal processing. The low input bias current and low input offset voltage ensure high accuracy and stability, while the surface mount package and compliance with industry standards make it easy to integrate into modern electronic designs. Whether for industrial control systems or power management circuits, the LT1970CFE#PBF offers a reliable and efficient solution for engineers and designers in the electronics industry.
