LT8316EFE#PBF

LT8316EFE#PBF Description

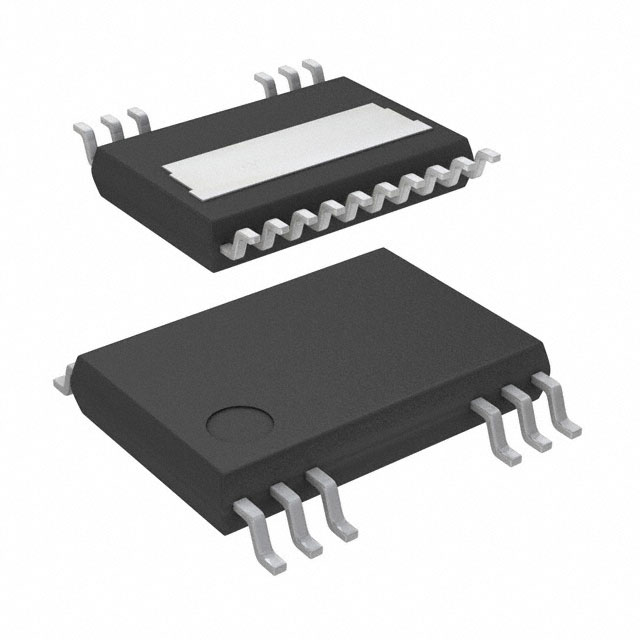

The LT8316EFE#PBF is a high-performance transistor driver designed for power management applications, manufactured by Analog Devices Inc. This device is part of the Power Management Integrated Circuits (PMIC) category and is known for its exceptional capabilities in handling wide input voltage ranges and providing efficient power conversion. The LT8316EFE#PBF operates within a broad switching frequency range of 220Hz to 140kHz, making it suitable for various power conversion topologies such as buck, boost, and flyback. Its wide input voltage range of 16V to 600V ensures robust performance across diverse applications. The device is packaged in a tube format and is designed for surface mount mounting, offering a compact and reliable solution for space-constrained designs.

LT8316EFE#PBF Features

• Output Type: Transistor Driver
• Output Configuration: Positive
• Product Status: Active
• Frequency - Switching: 220Hz to 140
  kHz- REACH Status: REACH Unaffected
• Mfr: Analog Devices Inc.
• Voltage - Supply (Vcc/Vdd): 16V to 600V
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• Synchronous Rectifier: Yes
• ECCN: EAR99
• Topology Buck:, Boost, Flyback
• Mounting Type: Surface Mount
• Number of Outputs: 1
• Control Features: Current Limit, Enable, Soft Start
• Output Phases: 1
• HTSUS: 8542.39.0001
• Package: Tube
• Base Product Number: LT8316

The LT831E6FE#PBF stands out with its synchronous rectifier feature, which enhances efficiency and reduces power loss. The device also includes essential control features such as current limit, enable, and soft start, ensuring stable and reliable operation. Its compliance with REACH and ROHS3 standards highlights its environmental friendliness and suitability for global markets.

LT8316EFE#PBF Applications

The LT8316EFE#PBF is ideal for applications requiring high voltage input ranges and efficient power conversion. Its versatility in supporting multiple topologies makes it suitable for a wide range of industries, including automotive, industrial, and telecommunications. Specific use cases include:

• Automotive: For high-voltage power supplies in electric and hybrid vehicles.
• Industrial: In power supplies for industrial equipment and machinery.
• Telecommunications: For isolated power supplies in telecom infrastructure.

The device's ability to operate in a wide frequency range and its compact surface mount package make it an excellent choice for applications where space and efficiency are critical.

Conclusion of LT8316EFE#PBF

The LT8316EFE#PBF from Analog Devices Inc. is a versatile and efficient transistor driver designed for demanding power management applications. Its wide input voltage range, broad switching frequency, and support for multiple topologies make it a reliable choice for various industries. The inclusion of synchronous rectification and essential control features further enhances its performance and reliability. With its compact surface mount package and compliance with environmental standards, the LT8316EFE#PBF is an ideal solution for modern power management needs.
