Analog Devices Inc.

LT8415IDDB

LT8415IDDB Description

The LT8415IDDB is a highly efficient, synchronous rectifier boost converter designed by Analog Devices Inc., a leading manufacturer in the field of power management and analog devices. This IC regulator features an adjustable output voltage, making it versatile for a wide range of applications. It operates with an input voltage range of 2.5V to 16V and can deliver a maximum output voltage of 40V. The LT8415IDDB is capable of providing up to 20mA of output through current its switch, making it suitable for low-power applications. The device is housed in a surface-mount 12DFN package, which is ideal for compact designs and easy integration into modern electronic systems. Despite its small form factor, the LT8415IDDB offers robust performance and reliability, with a moisture sensitivity level (MSL) of 1, indicating unlimited storage life.

LT8415IDDB Features

• Synchronous Rectifier: The LT8415IDDB incorporates a synchronous rectifier, which significantly enhances efficiency compared to traditional diode-based rectification. This feature reduces power loss and improves overall system performance, making it ideal for applications where energy efficiency is critical.
• Adjustable Output Voltage: With an adjustable output voltage ranging from 1.235V to 40V, the LT8415IDDB offers flexibility to meet various power requirements. This adjustability allows designers to optimize the output voltage for specific load conditions, ensuring optimal performance and efficiency.
• Wide Input Voltage Range: The device can operate with an input voltage as low as 2.5V and as high as 16V, making it suitable for a variety of power sources, including batteries and low-voltage power supplies.
• Low Output Current Capability: The LT8415IDDB is designed to provide up to 20mA of output current, making it ideal for low-power applications where minimal power consumption is essential.
• Positive Output Configuration: The positive output configuration ensures that the output voltage is always positive relative to the input voltage, simplifying circuit design and reducing the need for additional components.

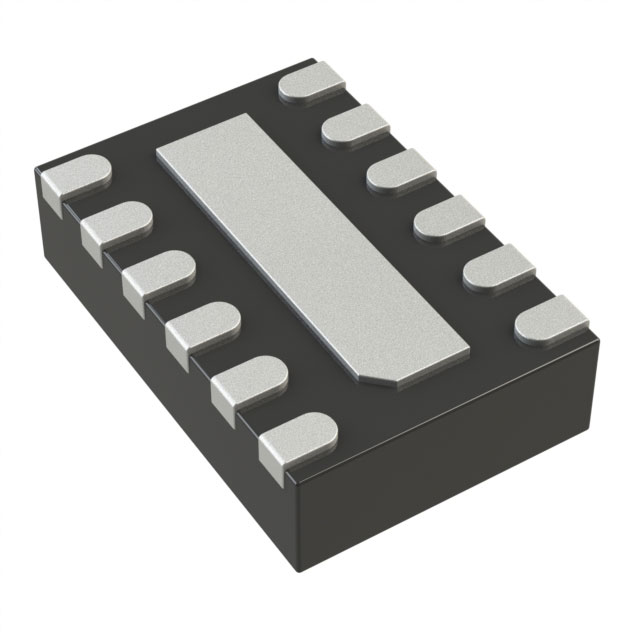

• Surface-Mount Packaging: The LT8415IDDB is available in a surface-mount 12DFN package, which is compact and easy to integrate into modern electronic designs. This packaging option also allows for efficient heat dissipation and improved reliability.
• Moisture Sensitivity Level 1: With an MSL of 1, the LT8415IDDB can be stored indefinitely without the need for special handling or packaging, reducing logistical complexities and costs.

LT8415IDDB Applications

The LT8415IDDB is well-suited for a variety of applications where low-power, high-efficiency boost conversion is required. Some specific use cases include:

• Battery-Powered Devices: The wide input voltage range and low output current capability make the LT8415IDDB ideal for battery-powered applications, such as portable electronics, wearables, and IoT devices.
• Low-Power Lighting: The adjustable output voltage and high efficiency are beneficial for driving LED lights and other low-power illumination systems.
• Medical Devices: The compact size and reliable performance of the LT8415IDDB make it suitable for medical devices that require precise power management and minimal power consumption.
• Industrial Sensors: The device can be used to power sensors and low other-power components in industrial environments, where reliability and efficiency are paramount.

Conclusion of LT8415IDDB

The LT8415IDDB from Analog Devices Inc. is a versatile and boost efficient converter that offers a range of features and benefits for low-power applications. Its synchronous rectifier, adjustable output voltage, and wide input voltage range provide flexibility and efficiency, making it an ideal choice a for variety of electronic systems. The surface-mount packaging and moisture sensitivity level of 1 ensure easy integration and long-term reliability. While the LT8415IDDB is now considered obsolete, its unique features performance and benefits continue to make it a valuable component for specific applications where low-power, high-efficiency boost conversion is required.
