LTC1445CDHD#TRPBF

LTC1445CDHD#TRPBF Description

The LTC1445CDHD#TRPBF is a high-performance, quad comparator with an integrated voltage reference, designed by Analog Devices Inc. This device is optimized for precision and low power consumption, making it ideal for a variety of applications requiring reliable and efficient signal processing. The LTC1445CDHD#TRPBF features a CMOS and TTL output type, ensuring compatibility with a wide range of digital systems. It operates within a supply voltage range of 2V to 11V for single supply and ±1V to ±5.5V for dual supply, providing flexibility in power management.

LTC1445CDHD#TRPBF Features

• High Common Mode Rejection Ratio (CMRR) and Power Supply Rejection Ratio (PSRR): The LTC1445CDHD#TRPBF boasts a typical CMRR and PSRR of 80dB, ensuring high accuracy and stability in varying power supply conditions.
• Low Quiescent Current: With a maximum quiescent current of 8.5µA, this comparator is highly energy-efficient, making it suitable for battery-powered and low-power applications.
• Fast Propagation Delay: The maximum propagation delay of 12µs ensures rapid response times, critical for high-speed signal processing.
• Wide Operating Temperature Range: The device operates reliably within a temperature range of 0°C to 70°C, making it suitable various for environmental conditions.
• Integrated Voltage Reference: The inclusion of a voltage reference simplifies design and enhances precision in applications requiring accurate voltage comparisons.
• Low Input Offset Voltage: A maximum input offset voltage of 10mV at 5V ensures high accuracy in voltage comparisons.
• Moisture Sensitivity Level (MSL) 1: The device is classified as MSL 1, indicating it is not moisture-sensitive and can be stored and handled without special precautions.
• Compliance: The LTC1445CDHD#TRPBF is REACH unaffected and RoHS3 compliant, ensuring it meets stringent environmental and safety standards.

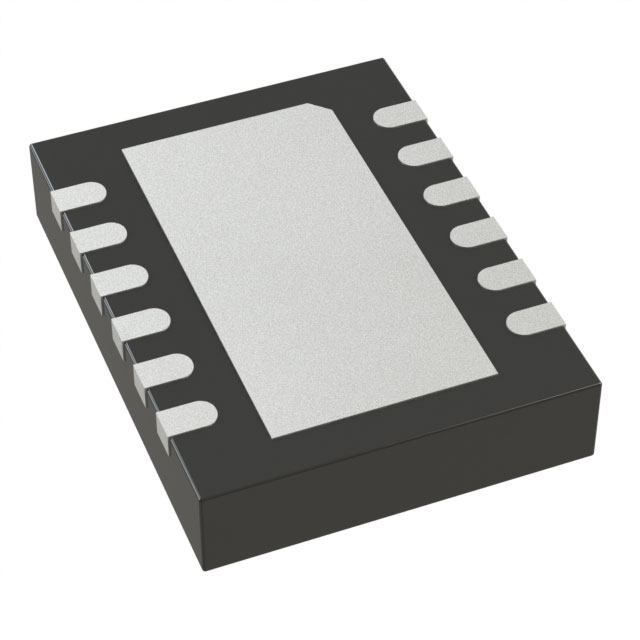

• Packaging: Available in a 16-lead DFN package with tape and reel (TR) packaging, facilitating surface mount assembly and high-volume production.

LTC1445CDHD#TRPBF Applications

The LTC1445CDHD#TRPBF is versatile and finds applications in various fields due to its high precision, low power consumption, and robust performance. Key applications include:

• Analog-to-Digital Converters (ADCs): The comparator's precision and speed make it suitable for use in ADCs, ensuring accurate and efficient signal conversion.
• Power Management Systems: The low quiescent current and wide operating voltage range make it ideal for monitoring and controlling power supply levels in battery-operated devices.
• Signal Processing: The fast propagation delay and low input offset voltage ensure reliable and accurate signal processing in various electronic systems.
• Automotive and Industrial Controls: The wide operating temperature range and robust performance make it suitable for harsh environments, such as automotive and industrial applications.
• Medical Equipment: The precision and reliability of the LTC1445CDHD#TRPBF make it suitable for medical devices requiring high accuracy and low power consumption.

Conclusion of LTC1445CDHD#TRPBF

The LTC1445CDHD#TRPBF is a high-performance quad comparator with an integrated voltage reference, offering a combination of precision, low power consumption, and robust performance. Its unique features, such as high CMRR and PSRR, low quiescent current, and fast propagation delay, provide significant advantages over similar models. The device is ideal for a wide range of applications, including ADCs, power management systems, signal processing, automotive controls, and medical equipment. With its compliance to REACH and RoHS3 standards and its moisture sensitivity level 1 classification, the LTC1445CDHD#TRPBF is a reliable and environmentally friendly choice for modern electronic designs.
