LTC1531CSW

LTC1531CSW Description

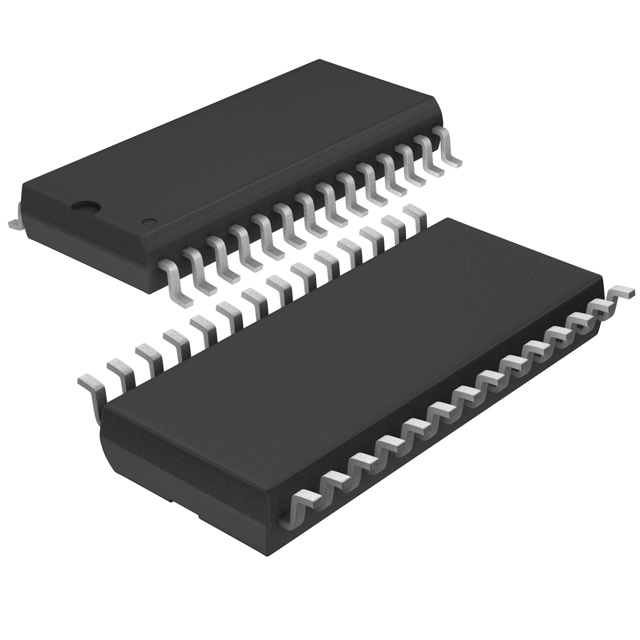

The LTC1531CSW from Analog Devices Inc. is a dual general-purpose comparator designed for precision signal detection and processing. Packaged in a 28-SOIC tube, this surface-mount IC operates within a 0°C to 70°C temperature range, making it suitable for industrial and commercial applications. With a quiescent current of up to 14mA and 800mV hysteresis, it ensures stable performance in noisy environments. Classified under EAR99 and HTSUS 8542.39.0001, it complies with global trade standards. Though marked obsolete, it remains a reliable choice for legacy designs requiring robust comparators.

LTC1531CSW Features

• Dual Comparator Design: Two independent comparators in a single package, reducing board space and cost.
• High Hysteresis (800mV): Minimizes false triggering in noisy or fluctuating signal conditions.
• Low Power Consumption: Quiescent current ≤14mA, balancing performance and efficiency.
• Surface-Mount (SOIC-28): Ideal for compact PCB layouts and automated assembly.
• Wide Operating Temperature (0°C to 70°C): Suitable for varied environmental conditions.
• Moisture Sensitivity Level 1 (MSL1): Unlimited shelf life, simplifying storage and handling.

LTC1531CSW Applications

• Power Management Systems: Voltage monitoring and fault detection in DC/DC converters.
• Industrial Control: Threshold detection in motor drives and sensor interfaces.
• Signal Conditioning: Window comparators for analog-to-digital signal processing.
• Legacy Electronics: Maintenance and repair of older systems requiring obsolete components.
• Battery-Powered Devices: Low-power comparator for portable equipment.

Conclusion of LTC1531CSW

The LTC1531CSW excels in noise immunity and dual-channel flexibility, offering a cost-effective solution for precision comparison tasks. While obsolete, its high hysteresis and low power draw make it a preferred choice for legacy designs or applications demanding robust performance. Engineers seeking reliable comparators for industrial, power, or signal processing systems will find this IC a practical option despite its discontinued status.
